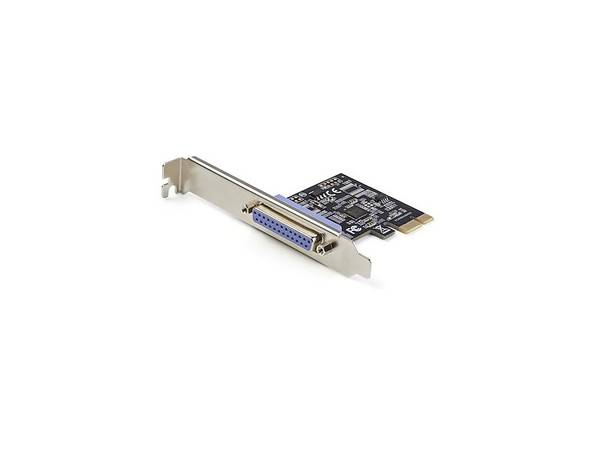

1-PORT PARALLEL PCIE CARD/PRINTER LPT 6735948

SKU
6735948
Bestseller
CA$45.99
Parallel PCIe card controller w/ DB25 parallel port - SPP/Byte/ECP modes - Works w/ IEEE 1284 up to 2.5Mbps - Printer/LPT port expansion adapter card - Asix AX99100 - PCI Express Base 1.1/PCI Pwr Mgmt 1.2 - Full/low-profile PCI-e x1 slot - Win/Linux





buy now pay later
  • Primary Information
    Product Description: StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP - parallel adapter - PCIe - IEEE 1284
    Device Type: Parallel adapter
    Form Factor: Plug-in card
    Interface (Bus) Type: PCI Express
    PCI Specification Revision: PCIe 2.0
    Ports: IEEE 1284
    Dimensions (WxDxH): 2.9 in x 4.7 in x 0.7 in
    Weight: 1.59 oz
    Data Link Protocol: Parallel
    Data Transfer Rate: 2.5 Mbps
    Processor: ASIX AX99100
    Color: Black
    System Requirements: Linux 2.6.x or later, Microsoft Windows 2003, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
    Manufacturer Warranty: 2-year warranty
  • General
    Device Type: Parallel adapter
    Form Factor: Plug-in card
    Interface (Bus) Type: PCI Express
    PCI Specification Revision: PCIe 2.0
  • Networking
    Ports: IEEE 1284
    Connectivity Technology: Wired
    Data Link Protocol: Parallel
    Data Transfer Rate: 2.5 Mbps
  • Processor / Memory
    Processor: ASIX AX99100
  • Expansion / Connectivity
    Interfaces: 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
  • Miscellaneous
    Included Accessories: Low-profile bracket
    MTBF: 17,520 hours
    Compliant Standards: FCC, RCM, RoHS, WEEE
    Color: Black
  • Software / System Requirements
    OS Required: Linux 2.6.x or later, Microsoft Windows 2003, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
  • Dimensions & Weight
    Width: 2.9 in
    Depth: 4.7 in
    Height: 0.7 in
    Weight: 1.59 oz
  • Dimensions & Weight (Shipping)
    Shipping Width: 6.7 in
    Shipping Depth: 5.6 in
    Shipping Height: 1.2 in
    Shipping Weight: 10.23 oz
  • Manufacturer Warranty
    Service & Support: Limited warranty - 2 years
  • Environmental Parameters
    Min Operating Temperature: 41 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 40 - 80%
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43201404
BRANDSSTARTECHCOM
UNSPSC43201404
Part#STC-PEX1P2
MFG Part#PEX1P2
UPC65030891400
Device TypeParallel adapter
Connectivity TechnologyWired
Data Transfer Rate2.5 Mbps
Form FactorPlug-in card
Data Link ProtocolParallel
ColorBlack
