1000VA 120V UPS LOCAL BANK CONTROL 7266604
SKU
7266604
Category: UPS
- Primary Information

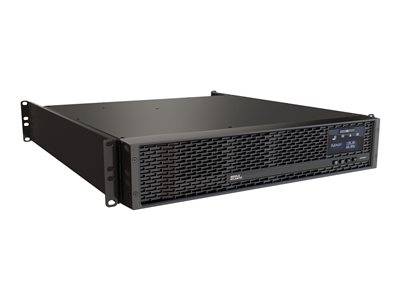

Product Description: Middle Atlantic NEXSYS Series - UPS Backup Power with RackLink - 1000VA - UPS - backup power system - 900 Watt - 1000 VA - Sealed Lead Acid (SLA) - 7 Ah Device Type: UPS - rack-mountable Cord Length: 6 ft Rack Size: 19" - 2U Weight: 44.09 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 900 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 8 x power NEMA 5-15R Battery: Sealed Lead Acid (SLA) - 7 Ah Batteries Qty: 3 Run Time (Up To): 4 min at full load Networking: RS-232, USB Color: Black System Requirements: Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11 Dimensions (WxDxH): 19 in x 16 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" Cord Length: 6 ft Color: Black - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 80 - 158 V Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 8 x power NEMA 5-15R Output Voltage: AC 120 V Max Electric Current: 15 A Power Capacity: 900 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 1000 Joules Circuit Protection: Circuit breaker Power Factor (PF): 0.9 - Battery
Quantity: 3 Technology: Sealed Lead Acid (SLA) Voltage Provided: 12 V Capacity: 7 Ah Run Time (Up To): 4 min at full load ¦ 13 min at half load Recharge Time: 6 hours Transfer Time: 10 ms Features: Maintenance free, hot-swappable - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x dry contact - terminal block ¦ 1 x EPO (emergency power off) - terminal block - Miscellaneous
Cables Included: Power cable 6 ft Features: LCD display, Automatic Voltage Regulation (AVR), Metal Oxide Varistor Technology (MOV), fault alarm, low battery alarm, EBM - External Battery Module - Auto Detection Compliant Standards: FCC Class A certified, UL 1778, RoHS, cTUVus, REACH, CAN/CSA C22.2, RoHS3 - Software / System Requirements
OS Required: Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11 - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dB - Dimensions & Weight
Width: 19 in Depth: 16 in Height: 3.5 in Weight: 44.09 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 54.01 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121011 |
| Part# | MAA-UPX-1000R-2 |
| MFG Part# | UPX-1000R-2 |
| UPC | 656747395574 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
