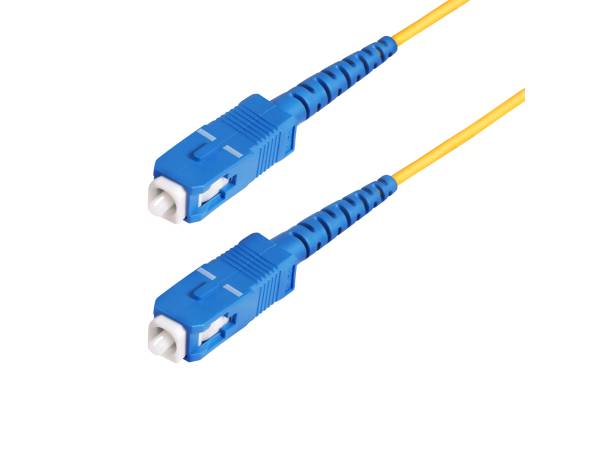

100M (328FT) SC TO SC (UPC) OS2 SINGLE MODE SIMPLEX FIBER OPTIC CABLE, 9/125 M, 7500999
SKU
7500999
CA$184.99
328ft SC/SC-UPC Simplex OS2 Single Mode Fiber Cable supports 40G/100G and BiDi; 9/125um core/cladding; 1260-1625nm Laser Optimized; LSZH jacket w/molded strain reliefs; Bend Radius: 10mm (loaded/unloaded); Insertion/Return Loss: 0.3dB/ 55dB
Category: Network Cables
- Primary Information
Product Description: StarTech.com 100m (328ft) SC to SC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss, LSZH Fiber Patch Cord - patch cable - 100 m - yellow Type: Patch cable - OS1/OS2 Technology: Simplex fiber optic Type of Fiber Optics: Singlemode Features: Halogen-free, bi-directional, passive adapter, up to 100 Gbps, bend insensitive, low insertion loss, bending radius 10mm, wavelength of 1260-1625 nm, 0.3 dB insertion loss, 55 dB return loss, Coarse Wavelength Division Multiplexing (CWDM) support, ceramic ferrule, aramid fiber reinforced Length: 100 m Diameter: 0.1 in Core / Cladding Diameter: 9 / 125 micron Connector: SC/UPC single-mode - male Connector (Second End): SC/UPC single-mode - male Color: Yellow Manufacturer Warranty: Limited lifetime warranty - General
Network Cable Type: Patch cable - OS1/OS2 Technology: Simplex fiber optic Type of Fiber Optics: Singlemode Jacket Material: Low Smoke Zero Halogen (LSZH) Core / Cladding Diameter: 9 / 125 micron Features: Halogen-free, bi-directional, passive adapter, up to 100 Gbps, bend insensitive, low insertion loss, bending radius 10mm, wavelength of 1260-1625 nm, 0.3 dB insertion loss, 55 dB return loss, Coarse Wavelength Division Multiplexing (CWDM) support, ceramic ferrule, aramid fiber reinforced Length: 100 m Diameter: 0.1 in Color: Yellow - Connectivity
Connector: SC/UPC single-mode - male Connector (Second End): SC/UPC single-mode - male - Miscellaneous
Compliant Standards: EMI, WEEE, RoHS - Dimensions & Weight (Shipping)
Shipping Width: 11 in Shipping Depth: 11 in Shipping Height: 0.7 in Shipping Weight: 12.56 oz - Manufacturer Warranty
Service & Support: Limited lifetime warranty - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26121607
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 26121607 |
| Part# | STC-SPSMSCSC-OS2-100M |
| MFG Part# | SPSMSCSC-OS2-100M |
| UPC | 65030903387 |
| Length | 100 m |
| Type | Patch cable - OS1/OS2 |
| Color | Yellow |
