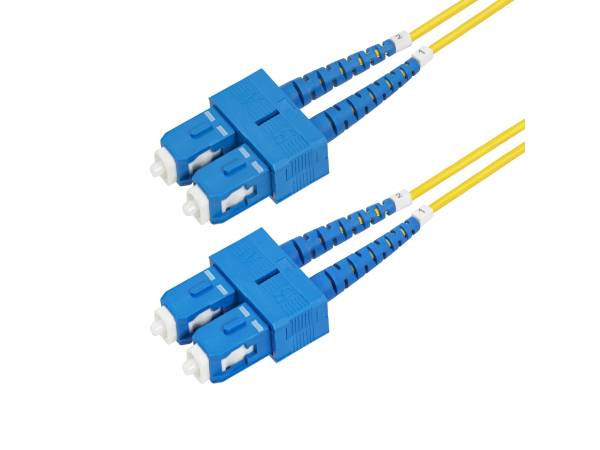

10M (32.8FT) SC TO SC (UPC) OS2 SINGLE MODE DUPLEX FIBER OPTIC CABLE, 9/125 M, 4 7506858
SKU
7506858
CA$40.99
32.8ft SC/SC-UPC OS2 Single Mode Fiber Cable supports 40G/100G networks and CWDM; 9/125um core/cladding; 1260-1625nm Laser Optimized; LSZH jacket w/molded strain reliefs; Bend Radius: 10mm (loaded/unloaded); Insertion Loss: 0.3dB; Return Loss: 55dB
Category: Network Cables
- Primary Information
Product Description: StarTech.com 10m (32.8ft) SC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, Laser Optimized, 40G/100G Zipcord, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2SCSC10M) - patch cable - 10 m - yellow Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Features: Halogen-free, up to 100 Gbps, bend insensitive, low insertion loss, Coarse Wavelength Division Multiplexing (CWDM) support, wavelength of 1260-1625 nm, ceramic ferrule, 0.3 dB insertion loss, 55 dB return loss, bending radius 10mm, aramid fiber reinforced Length: 10 m Diameter: 0.1 in Core / Cladding Diameter: 9 / 125 micron Connector: 2 x SC/UPC single-mode - male Connector (Second End): 2 x SC/UPC single-mode - male Color: Yellow Manufacturer Warranty: Limited lifetime warranty - General
Network Cable Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Jacket Material: Low Smoke Zero Halogen (LSZH) Core / Cladding Diameter: 9 / 125 micron Features: Halogen-free, up to 100 Gbps, bend insensitive, low insertion loss, Coarse Wavelength Division Multiplexing (CWDM) support, wavelength of 1260-1625 nm, ceramic ferrule, 0.3 dB insertion loss, 55 dB return loss, bending radius 10mm, aramid fiber reinforced Length: 10 m Diameter: 0.1 in Color: Yellow - Connectivity
Connector: 2 x SC/UPC single-mode - male Connector (Second End): 2 x SC/UPC single-mode - male - Miscellaneous
Compliant Standards: WEEE, EMI - Dimensions & Weight (Shipping)
Shipping Width: 8.7 in Shipping Depth: 7.9 in Shipping Height: 0.4 in Shipping Weight: 3.18 oz - Manufacturer Warranty
Service & Support: Limited lifetime warranty - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26121607
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 26121607 |
| Part# | STC-SMDOS2SCSC10M |
| MFG Part# | SMDOS2SCSC10M |
| UPC | 65030906623 |
| Length | 10 m |
| Type | Patch cable - OS1/OS2 |
| Color | Yellow |
