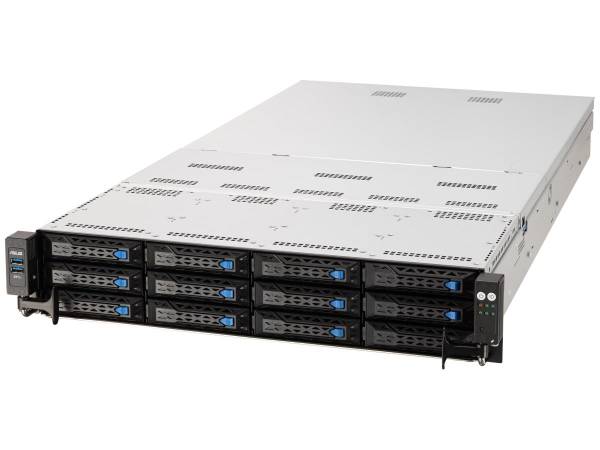

12B + GPU + 10G without Expander + Ball-bearing rail kit 7367459
SKU
7367459
CA$4,564.42
2U Rackmount - Dual AMD EPYC 7002/7003-series Processors - 32 (8-channel per CPU, 16 DIMM per CPU) - Maximum up to 4096GB LRDIMM - 1 x Dual Port Intel I710-AT2 10G LAN controller + 1 x Mgmt LAN - 2400W - 3 Years with ARS
Category: Servers
- Primary Information
System Type: Server Model: RS720A-E11-RS12E Cabinet Form Factor: 2U Processor / Type: AMD EPYC 7002 Series; AMD EPYC 7003 Series Processor / Manufacturer: AMD Processor / Installed Qty: 2 Mainboard / Chipset Type: System on Chip RAM / Technology: DDR4 RAM / Total Slots Qty: 32 RAM / Max Supported Size: 4096 GB Hard Drive / Size: 3.5" Hard Drive / Bays Qty: 12 Networking Type: 1 x Dual Port Intel I710-AT2 10G LAN controller + 1 x Mgmt LAN Storage Controller Type: SATA 6Gb/s; M.2 Storage Controller / Channel Qty: 8 Data Link Protocol: Gigabit Ethernet Ethernet Ports: 2 Graphics Controller: Aspeed AST2600 Video Memory / Installed Size: 64 MB Power / Device Type: Power Supply Power / Redundant Capable: Yes Power / Redundant Scheme: 1+1 Power / Provided (W): 2400 Watt Power / Voltage Required: 100-240Vac Interfaces & Connections: 2 x USB 3.2 Gen1 ports;2 x USB 3.2 Gen1 ports; 1 x VGA port; 1 x RJ-45 Mgmt LAN port; 1 x OCP3.0 port; Front I/O Ports: 2 x USB 3.2 Gen1 ports; Rear I/O Ports: 2 x USB 3.2 Gen1 ports; 1 x VGA port; 1 x RJ-45 Mgmt LAN port; 1 x OCP3.0 port; Expansion Bays Total (Free): 12x 2.5" HDD Bay Expansion Slots Total (Free): 9 x Expansion slots: 4x FHFL doublewide; 2x M.2; 9x PCI-E 4.0; Width: 840 Mm Depth: 449 Mm Height: 88.1 Mm Weight: 18.195 Kg Service & Support Type: 3 Years with ARS Features: Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller; Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency; High power efficiency with redundant 2400W 80 Plus Titanium and Platinum power supplies. Min Operating Temperature: 10 Degree Celsius Max Operating Temperature: 35 Degree Celsius - RAM
RAM / Max Supported Size: 4096 GB RAM / Technology: DDR4 RAM / Total Slots Qty: 32 - Processor
Processor / Manufacturer: AMD Processor / Type: AMD EPYC 7002 Series; AMD EPYC 7003 Series Processor / Installed Qty: 2 - Storage
Hard Drive / Size: 3.5" Hard Drive / Bays Qty: 12 - Networking
Networking Type: 1 x Dual Port Intel I710-AT2 10G LAN controller + 1 x Mgmt LAN Data Link Protocol: Gigabit Ethernet - Video
Graphics Controller: Aspeed AST2600 Video Memory / Installed Size: 64 MB - Power
Power / Device Type: Power Supply Power / Redundant Capable: Yes Power / Redundant Scheme: 1+1 Power / Provided (W): 2400 Watt Power / Voltage Required: 100-240Vac - Expansion
Interfaces & Connections: 2 x USB 3.2 Gen1 ports;2 x USB 3.2 Gen1 ports; 1 x VGA port; 1 x RJ-45 Mgmt LAN port; 1 x OCP3.0 port; Front I/O Ports: 2 x USB 3.2 Gen1 ports; Rear I/O Ports: 2 x USB 3.2 Gen1 ports; 1 x VGA port; 1 x RJ-45 Mgmt LAN port; 1 x OCP3.0 port; Expansion Bays Total (Free): 12x 2.5" HDD Bay Expansion Slots Total (Free): 9 x Expansion slots: 4x FHFL doublewide; 2x M.2; 9x PCI-E 4.0; - Dimensions&Miscellaneous
Width: 840 Mm Depth: 449 Mm Height: 88.1 Mm - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211502
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43211502 |
| Part# | ASU-RS720A-E11-WOCPU175Z |
| MFG Part# | RS720A-E11-WOCPU175Z |
| UPC | 197105342989 |
| Mainboard / Chipset Type | System on Chip |
| Processor / Installed Qty | 2 |
| Processor / Manufacturer | AMD |
| RAM / Total Slots Qty | 32 |
| Video Memory / Installed Size | 64 MB |
| Power / Redundant Capable | Yes |
| Hard Drive / Bays Qty | 12 |
| Storage Controller / Channel Qty | 8 |
| Storage Controller Type | M.2, SATA 6Gb/s |
| RAM / Technology | DDR4 |
| Processor / Type | AMD EPYC 7002 Series, AMD EPYC 7003 Series |
| Cabinet Form Factor | 2U |
| Data Link Protocol | Gigabit Ethernet |
| Graphics Controller | Aspeed AST2600 |
| Power / Device Type | Power Supply |
| System Type | Server |
| Hard Drive / Size | 3.5" |
