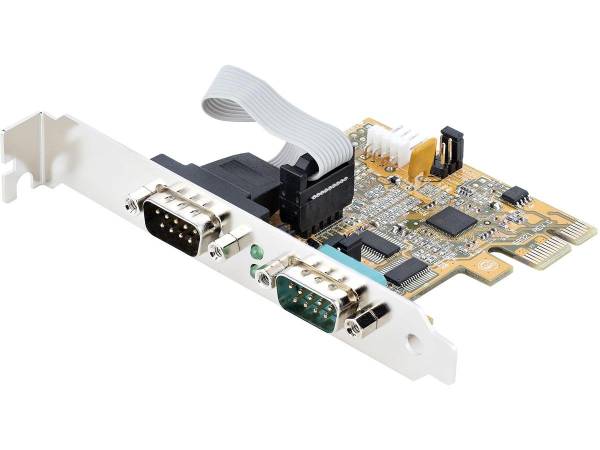

2-PORT PCI EXPRESS RS232 SERIAL CARD 6930672
SKU
6930672
CA$86.99
Connect serial RS232 (DB9) devices, using this PC Serial Card. Supports 16C1050 UART. LED lights to monitor activity on the PCI express DB9 card - The UART PCIe card supplies 5/12V over pin 9. Continue using legacy hardware with this RS232 PCIe card
Category: Others Accessories
- Primary Information
Product Description: StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux - PCIe to Dual DB9 Card (21050-PC-SERIAL-CARD) - serial adapter - PCIe 2.0 - RS-232 x 2 Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 PCI Specification Revision: PCIe 2.0 Ports: RS-232 x 2 Dimensions (WxDxH): 0.7 in x 2.6 in x 2.6 in Data Link Protocol: RS-232 Data Transfer Rate: 921.6 Kbps Compliant Standards: 16C1050 UART Color: Yellow System Requirements: Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux Manufacturer Warranty: 2-year warranty - General
Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 PCI Specification Revision: PCIe 2.0 - Networking
Ports: RS-232 x 2 Connectivity Technology: Wired Data Link Protocol: RS-232 Data Transfer Rate: 921.6 Kbps Status Indicators: Status Features: 256-byte FIFO Compliant Standards: 16C1050 UART - Expansion / Connectivity
Interfaces: 2 x RS-232 - 9 pin D-Sub (DB-9) - male (external) - Miscellaneous
Included Accessories: Low-profile bracket Color: Yellow - Software / System Requirements
OS Required: Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux - Dimensions & Weight
Width: 0.7 in Depth: 2.6 in Height: 2.6 in - Dimensions & Weight (Shipping)
Shipping Width: 8.1 in Shipping Depth: 5.7 in Shipping Height: 1.5 in Shipping Weight: 7.05 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 5 - 95% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211600
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211600 |
| Part# | STC-21050-PC-SERIAL-CARD |
| MFG Part# | 21050-PC-SERIAL-CARD |
| UPC | 65030894760 |
| Device Type | Serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | RS-232 |
| Color | Yellow |
