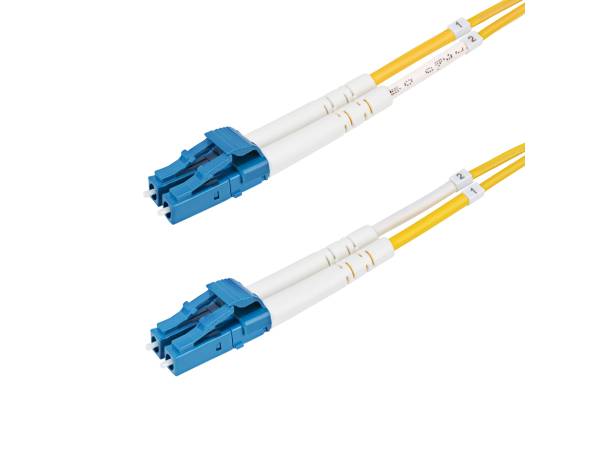

25M (82FT) LC TO LC (UPC) OS2 SINGLE MODE DUPLEX FIBER OPTIC CABLE, 9/125 M, 100 7500986
SKU
7500986
CA$58.99
82ft LC/LC-UPC OS2 Single Mode Fiber Cable supports 100G networks and CWDM; 9/125um core/cladding; 1260-1625nm Laser Optimized; LSZH jacket w/molded strain reliefs; Bend Radius: 10mm (loaded/unloaded); Insertion Loss: 0.3dB; Return Loss: 55dB
Category: Network Cables
- Primary Information
Product Description: StarTech.com 25m (82ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC25M) - patch cable - 25 m - yellow Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Features: Halogen-free, passive adapter, bend insensitive, low insertion loss, wavelength of 1260-1625 nm, color coded connectors, Coarse Wavelength Division Multiplexing (CWDM) support, aramid fiber reinforced, bending radius 10mm, 0.3 dB insertion loss, 55 dB return loss, ceramic ferrule, up to 10 Gbps Length: 25 m Diameter: 0.1 in Core / Cladding Diameter: 9 / 125 micron Connector: 2 x LC/UPC single-mode - male Connector (Second End): 2 x LC/UPC single-mode - male Color: Yellow Manufacturer Warranty: Limited lifetime warranty - General
Network Cable Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Jacket Material: Low Smoke Zero Halogen (LSZH) Core / Cladding Diameter: 9 / 125 micron Features: Halogen-free, passive adapter, bend insensitive, low insertion loss, wavelength of 1260-1625 nm, color coded connectors, Coarse Wavelength Division Multiplexing (CWDM) support, aramid fiber reinforced, bending radius 10mm, 0.3 dB insertion loss, 55 dB return loss, ceramic ferrule, up to 10 Gbps Length: 25 m Diameter: 0.1 in Color: Yellow - Connectivity
Connector: 2 x LC/UPC single-mode - male Connector (Second End): 2 x LC/UPC single-mode - male - Miscellaneous
Compliant Standards: EMI, WEEE - Dimensions & Weight (Shipping)
Shipping Width: 11 in Shipping Depth: 11 in Shipping Height: 0.6 in Shipping Weight: 6.4 oz - Manufacturer Warranty
Service & Support: Limited lifetime warranty - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26121607
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 26121607 |
| Part# | STC-SMDOS2LCLC25M |
| MFG Part# | SMDOS2LCLC25M |
| UPC | 65030901796 |
| Length | 25 m |
| Type | Patch cable - OS1/OS2 |
| Color | Yellow |
