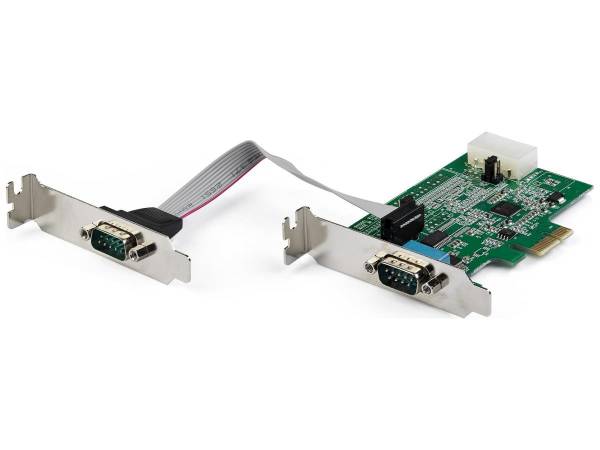

2PORT PCIE RS232 SERIAL DB9 ADAPTER CARD 6353637
SKU
6353637
CA$72.99
2-port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100 - Bi-directional speeds 921.6Kbps/port / 256 byte FIFO / 9th data bit - Pin 9 pwr out 5v/12v/none w/up to 2A total - Expansion card w/low profile bracket (Std incl) - Win/Linux
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Ports, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX2S953LP) - serial adapter - PCIe - RS-232 x 2 Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 1.1 Ports: RS-232 x 2 Dimensions (WxDxH): 2.6 in x 3.9 in x 0.7 in Weight: 1.96 oz Data Link Protocol: RS-232 Data Transfer Rate: 921.6 Kbps Processor: ASIX AX99100 System Requirements: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 1.1 - Networking
Ports: RS-232 x 2 Connectivity Technology: Wired Data Link Protocol: RS-232 Data Transfer Rate: 921.6 Kbps Features: Full duplex mode, 256-byte FIFO - Processor / Memory
Processor: ASIX AX99100 - Expansion / Connectivity
Interfaces: 2 x RS-232 - 9 pin D-Sub (DB-9) - Miscellaneous
Included Accessories: Full-height bracket Compliant Standards: WHQL, FCC, RoHS, WEEE - Software / System Requirements
OS Required: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x - Dimensions & Weight
Width: 2.6 in Depth: 3.9 in Height: 0.7 in Weight: 1.96 oz - Dimensions & Weight (Shipping)
Shipping Weight: 5.16 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 176 °F Humidity Range Operating: 5 - 85% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-PEX2S953LP |
| MFG Part# | PEX2S953LP |
| UPC | 65030881166 |
| Device Type | Serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | RS-232 |
