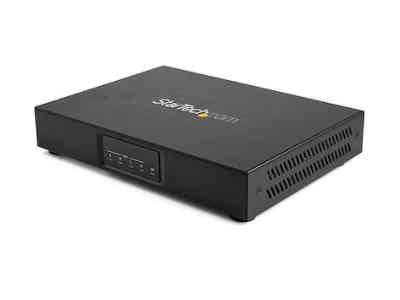

2X2 HDMI VIDEO WALL CONTROLLER/PROCESSOR 6559447
SKU
6559447
CA$1,238.99
Only 2 left
2x2 HDMI video wall controller/processor to split and scale 4K 60Hz HDMI signal to 4x 1080p displays for large video wall - 7.1ch audio/HDCP 2.2 - HDMI video wall splitter w/ EDID emulation - RS232/Ethernet control/Telnet/UDP - Mounting brackets
Category: AV Accessories
- Primary Information
Product Description: StarTech.com 2x2 HDMI Video Wall Controller, 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output, Video Wall Processor for Multi Screen Display, Video Wall Splitter, RS232/Ethernet Control - Remote configuration (ST124HDVW) - video/audio splitter - 4 ports Device Type: Video/audio splitter - 4 ports Subtype: HDMI Ports: 4 x HDMI Features: 7.1 channel audio support, 4K resolution support, metal housing, video wall function, EDID Management Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 9.1 in x 6.5 in x 1.8 in Weight: 2.2 lbs Color: Black Manufacturer Warranty: 2-year warranty - General
Device Type: Video/audio splitter - 4 ports Enclosure Type: Desktop Subtype: HDMI Ports: 4 x HDMI Max Resolution: 4096 x 2160 @ 60 Hz Features: 7.1 channel audio support, 4K resolution support, metal housing, video wall function, EDID Management Status Indicators: Input, output - Expansion / Connectivity
Interfaces: 1 x HDMI input ¦ 4 x HDMI output ¦ 1 x LAN RJ-45 ¦ 1 x serial DB-9 ¦ 1 x USB 2.0 Type A - Power
Power Device: External power adapter Power Provided: DC 24 V - 1.25 A Voltage Required: AC 120/230 V (50/60 Hz) - Miscellaneous
Color: Black Compliant Standards: RoHS, REACH, WEEE, FCC, HDCP 2.2, Plug and Play - Dimensions & Weight
Width: 9.1 in Depth: 6.5 in Height: 1.8 in Weight: 2.2 lbs - Dimensions & Weight (Shipping)
Shipping Width: 11.8 in Shipping Depth: 10.2 in Shipping Height: 2.8 in Shipping Weight: 3.51 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 20 - 90% (non-condensing) Min Storage Temperature: -4 °F Max Storage Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 52161600 |
| Part# | STC-ST124HDVW |
| MFG Part# | ST124HDVW |
| UPC | 65030883603 |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | Video/audio splitter - 4 ports |
| Color | Black |
| Enclosure Type | Desktop |
