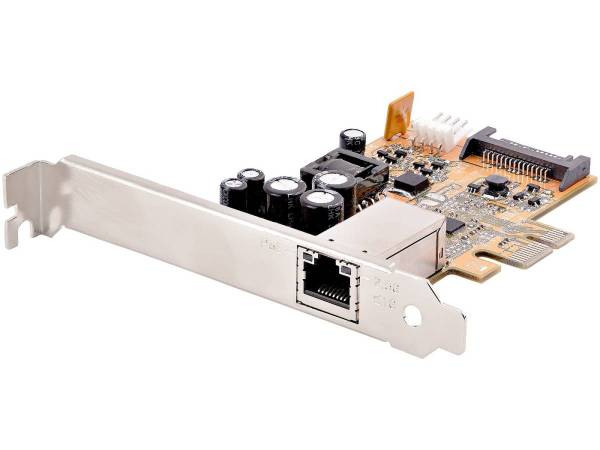

30W 2.5GBPS PCIE POE NETWORK CARD, NIC 7063504
SKU
7063504
CA$147.99
PCI Express x1 PoE Network Card supports 2.5Gbps and supplies 30W PSE/25.5W PD at 48V DC; Use existing copper cables without a PoE injector; PCIe NIC supports 802.3af/at (PoE+) and NBASE-T; SATA/SP4 power connectors; Windows/Linux; LP Bracket incl
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45 Port, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket Included - NBASE-T, Windows/Linux Support (ST1000PEXPSE) - network adapter - PCIe 2.1 - 2.5GBase-T (PoE+) x 1 Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.1 x1 Ports: 2.5GBase-T (PoE+) x 1 Dimensions (WxDxH): 0.6 in x 3.7 in x 2.5 in Weight: 7.76 oz Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE Data Transfer Rate: 2.5 Gbps Capacity: Jumbo frame size: 16000 Processor: 1 x Realtek Semiconductor RTL8125B Compliant Standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az System Requirements: Microsoft Windows 11, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Linux Kernel 2.4.20 or later (LTS versions only) Manufacturer Warranty: 2-year warranty - General
Device Type: Network adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.1 x1 - Networking
Ports: 2.5GBase-T (PoE+) x 1 Connectivity Technology: Wired Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, NBase-T Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet Data Transfer Rate: 2.5 Gbps Capacity: Jumbo frame size: 16000 Status Indicators: PoE, link Features: PoE, EEE, VLAN Tagging, WOL, flow control, Auto MDIX, full duplex capability, PXE boot, 30W PoE+ power budget, PSE, RealWoW! Technology Compliant Standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE P802.3az - Processor / Memory
Processor: 1 x Realtek Semiconductor RTL8125B - Expansion / Connectivity
Interfaces: 1 x 1/2.5GBase-T (PoE+) - RJ-45 ¦ 1 x SATA power - 15 pin Serial ATA power ¦ 1 x SP4 power - 4 pin connector - male - Miscellaneous
Included Accessories: Low-profile bracket, full-height bracket Compliant Standards: RoHS, RCM, WEEE - Software / System Requirements
Software Included: Drivers & Utilities OS Required: Microsoft Windows 11, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2019, Linux Kernel 2.4.20 or later (LTS versions only) - Dimensions & Weight
Width: 0.6 in Depth: 3.7 in Height: 2.5 in Weight: 7.76 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years ¦ Technical support - assistance - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% RH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-ST1000PEXPSE |
| MFG Part# | ST1000PEXPSE |
| UPC | 65030893107 |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.5 Gbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
