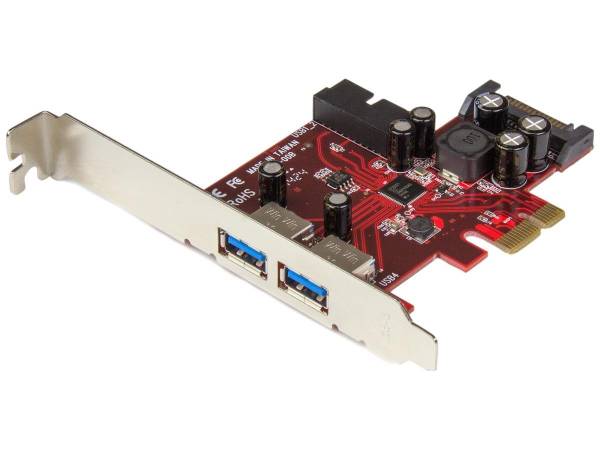

4 PORT PCIE USB 3.0 CARD - 2 EXT & 2 INT 5436501
SKU
5436501
CA$63.99
Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headers - 4 Port PCI Express USB 3.0 Card - 2 External 2 Internal - SATA Power - UASP Support - 2 Internal Headers - Adapter Card w/ Win 8 Native OS Support
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com 4 Port PCI Express USB 3.0 Card - 2 Ext & 2 Int (IDC) - SATA Power - USB adapter - PCIe 2.0 - USB 3.0 x 4 Device Type: USB adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 Ports: USB 3.0 x 4 Dimensions (WxDxH): 0.7 in x 4.8 in x 3.6 in Weight: 1.94 oz Data Link Protocol: USB, USB 2.0, USB 3.0 Data Transfer Rate: 5 Gbps Processor: Renesas uPD720201 Compliant Standards: USB 1.1, USB 2.0, USB 3.0 System Requirements: Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 or later, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits) Manufacturer Warranty: 2-year warranty Designed For: P/N: ST1030USBM, ST7300USBME - General
Device Type: USB adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 - Networking
Ports: USB 3.0 x 4 Connectivity Technology: Wired Data Link Protocol: USB, USB 2.0, SuperSpeed USB 3.0 Data Transfer Rate: 5 Gbps Features: Built-in SATA power connector, UASP Compliant Standards: USB 1.1, USB 2.0, USB 3.0 - Processor / Memory
Processor: Renesas uPD720201 - Expansion / Connectivity
Interfaces: 2 x USB 3.0 - 9 pin USB Type A (external) ¦ 2 x USB 3.0 - 20 pin USB 3.0 header (internal) - Miscellaneous
Included Accessories: Low-profile bracket MTBF: 1,920,042 hour(s) Compliant Standards: FCC, RoHS - Software / System Requirements
Software Included: Drivers & Utilities OS Required: Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 or later, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits) - Dimensions & Weight
Width: 0.7 in Depth: 4.8 in Height: 3.6 in Weight: 1.94 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 122 °F Humidity Range Operating: 20 - 80% - Compatibility Information
Designed For: P/N: ST1030USBM, ST7300USBME - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-PEXUSB3S2EI |
| MFG Part# | PEXUSB3S2EI |
| UPC | 65030860338 |
| Device Type | USB adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 5 Gbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | SuperSpeed USB 3.0, USB, USB 2.0 |
