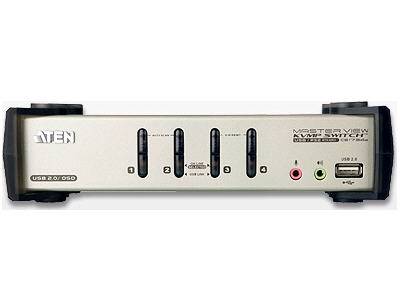

Device Type: | KVM Switch |
Form Factor: | External |
Networking / Ports Qty: | Not Included |
Connections: | 1 x USB Type A Female; 1 x HDB-15 Female; 1 x USB Type A Female ; 2 x Mini Stereo Jack Female ; 4 x Mini Stereo Jack Female |
Interfaces: | Console Ports 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) KVM Ports 4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) Firmware Upgrade 1 x 4-conductor 3.5mm Jack (Black) Power 1 x DC Jack USB Hub 2 x USB Type A Female (White) |
Max Resolution (external): | 2048 x 1536 @ 60Hz; DDC2B |
Width: | 8.27 Inch |
Depth: | 3.46 Inch |
Height: | 2.19 Inch |
PC Compatibility: | Mac; PC; Sun |
Service & Support Type: | 3 years warranty |
Features: | One console controls four computers and two additional USB devices 2-port USB 2.0 hub built in ; Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations ; Independent switching of KVM, USB, and audio focus |
RoHS: | Y |
COO: | CHINA |
UNSPSC Code: | 43211604 |
BRANDS | ATEN TECHNOLOGY |
---|---|
UNSPSC | 43211604 |
Part# | ATE-CS1734B |
MFG Part# | CS1734B |
UPC | 672792112256 |
Device Type | KVM Switch |
Form Factor | External |
Networking / Ports Qty | Not Included |
