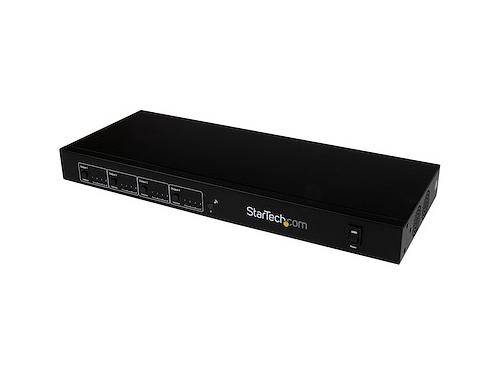

4X4 HDMI MATRIX SWITCHER / CAT5 EXTENDER 5212884
SKU
5212884
CA$100.00
Share and extend four HDMI video sources up to 230ft over Cat5, and switch between four remote displays-HDMI Extension-HDMI over Cat5-HDMI Matrix Switcher-HDMI matrix 4x4-HDMI Extender over Cat 5-Matrix Cat5 Cat6 Extender
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com 4x4 HDMI Matrix Switcher / HDMI Extender over Cat5 / Cat6 - video/audio/infrared extender Device Type: Video/audio/infrared extender Ports Qty: 4 Form Factor: Rack-mountable Localization: Australia, North America, United Kingdom, Europe Transmission Medium: CAT 5/6 Max Transfer Distance: 230 ft Power: AC 120/230 V Dimensions (WxDxH): 17.1 in x 6.6 in x 1.7 in Weight: 4.41 lbs Manufacturer Warranty: 2-year warranty Designed For: P/N: STHDBTRX, SVA12M5NA - General
Device Type: Video/audio/infrared extender Form Factor: Rack-mountable Color: Black Localization: Australia, North America, United Kingdom, Europe - Networking
Ports Qty: 4 Connectivity Technology: Wired Max Resolution: 1920 x 1200 / 1080p Max Transfer Distance: 230 ft Status Indicators: Port status - Expansion / Connectivity
Interfaces: 8 x HDMI ¦ 8 x IrDA ¦ 1 x management - DB-9 ¦ 5 x network - RJ-45 - Miscellaneous
Compliant Standards: FCC, RoHS - Power
Power Device: Internal power supply Installed Qty: 1 Max Supported Qty: 1 Voltage Required: AC 120/230 V - Dimensions & Weight
Width: 17.1 in Depth: 6.6 in Height: 1.7 in Weight: 4.41 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 23 °F Max Operating Temperature: 95 °F Humidity Range Operating: 5 - 90% - Compatibility Information
Designed For: P/N: STHDBTRX, SVA12M5NA - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-ST424HDBT |
| MFG Part# | ST424HDBT |
| UPC | 65030852791 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 1920 x 1200 / 1080p |
| Device Type | Video/audio/infrared extender |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Color | Black |
