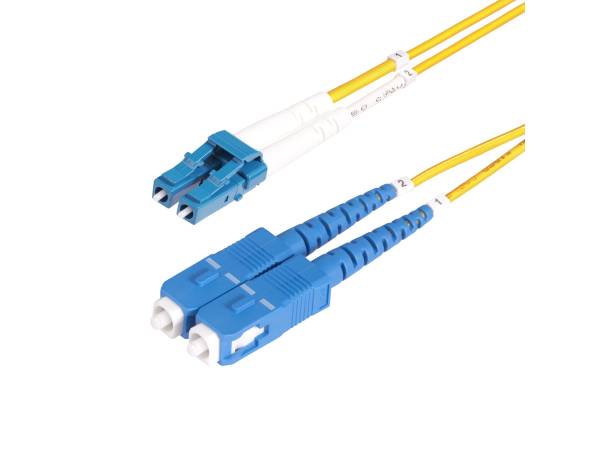

5M (16.4FT) LC TO SC (UPC) OS2 SINGLE MODE DUPLEX FIBER OPTIC CABLE, 9/125 M, 10 7500990
SKU
7500990
CA$27.99
16.4ft LC/SC-UPC OS2 Single Mode Fiber Cable supports 100G networks and CWDM; 9/125um core/cladding; 1260-1625nm Laser Optimized; LSZH jacket w/molded strain reliefs; Bend Radius: 10mm (loaded/unloaded); Insertion Loss: 0.3dB; Return Loss: 55dB
Category: Network Cables
- Primary Information
Product Description: StarTech.com 5m (15ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMLCSC-OS2-5M) - patch cable - 5 m - yellow Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Features: Up to 10 Gbps data transfer rate, halogen-free, passive adapter, bend insensitive, low insertion loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support, color coded connectors, aramid fiber reinforced, bending radius 10mm, 0.3 dB insertion loss, 55 dB return loss, ceramic ferrule Length: 5 m Diameter: 0.1 in Core / Cladding Diameter: 9 / 125 micron Connector: 2 x LC/UPC single-mode - male Connector (Second End): 2 x SC/UPC single-mode - male Color: Yellow Manufacturer Warranty: Limited lifetime warranty - General
Network Cable Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Jacket Material: Low Smoke Zero Halogen (LSZH) Core / Cladding Diameter: 9 / 125 micron Features: Up to 10 Gbps data transfer rate, halogen-free, passive adapter, bend insensitive, low insertion loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support, color coded connectors, aramid fiber reinforced, bending radius 10mm, 0.3 dB insertion loss, 55 dB return loss, ceramic ferrule Length: 5 m Diameter: 0.1 in Color: Yellow - Connectivity
Connector: 2 x LC/UPC single-mode - male Connector (Second End): 2 x SC/UPC single-mode - male - Miscellaneous
Compliant Standards: EMI, WEEE, RoHS - Dimensions & Weight (Shipping)
Shipping Width: 7.9 in Shipping Depth: 8.7 in Shipping Height: 0.2 in Shipping Weight: 1.64 oz - Manufacturer Warranty
Service & Support: Limited lifetime warranty - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26121607
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 26121607 |
| Part# | STC-SMLCSC-OS2-5M |
| MFG Part# | SMLCSC-OS2-5M |
| UPC | 65030903318 |
| Length | 5 m |
| Type | Patch cable - OS1/OS2 |
| Color | Yellow |
