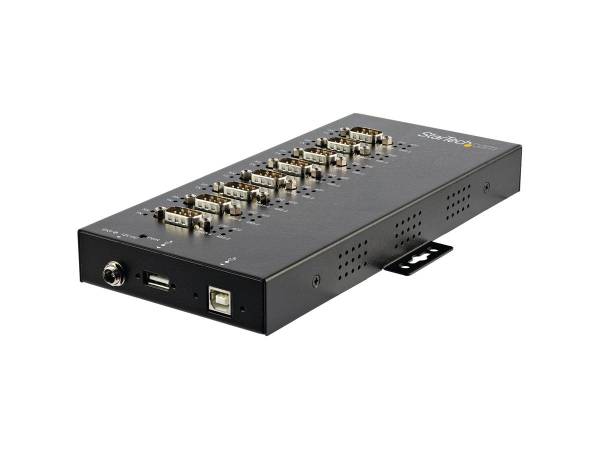

8 PORT SERIAL HUB USB TO RS232 ADAPTER 6085562
SKU
6085562
CA$611.99
Industrial 8 port serial hub 15kV Level 4 ESD - IP30 rating Metal USB to serial adapter converter w/ each DB9 port set to RS232/RS422/RS485(2wire/4wire) baud rates up to 921.6Kbps - Desk/wall/DIN rail mount - 6ft USB cable - 12V power adapter/5V USB
Category: Network Adapters
- Primary Information
Product Description: StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter, Industrial USB 2.0 to DB9 Serial Converter Hub, IP30 Rated, Din Rail Mountable Metal Serial Hub, 15kV ESD Protection - 6ft Locking Cable Incl - serial adapter - USB 2.0 - RS-232/422/485 x 8 - TAA Compliant Device Type: Serial adapter Form Factor: DIN rail mountable Interface (Bus) Type: USB 2.0 Ports: RS-232/422/485 x 8 Dimensions (WxDxH): 5 in x 8.6 in x 1 in Weight: 26.45 oz Data Link Protocol: RS-232, RS-422, RS-485 Data Transfer Rate: 921.6 Kbps Processor: FTDI FT4232H Color: Black System Requirements: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.9 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 2.4.x or later, Linux LTS versions only TAA Compliant: Yes Manufacturer Warranty: 2-year warranty - General
Device Type: Serial adapter Form Factor: DIN rail mountable Interface (Bus) Type: USB 2.0 - Networking
Ports: RS-232/422/485 x 8 Connectivity Technology: Wired Data Link Protocol: RS-232, RS-422, RS-485 Data Transfer Rate: 921.6 Kbps Status Indicators: Transmit, receive Features: 15 KV Electrostatic Discharge Protection - Processor / Memory
Processor: FTDI FT4232H - Expansion / Connectivity
Interfaces: 8 x RS-232/422/485 - 9 pin D-Sub (DB-9) - male ¦ 1 x USB - 4 pin USB Type A - female ¦ 1 x USB - 4 pin USB Type B - female - Miscellaneous
Cables Included: 1 x USB-A to USB-B cable (external) Compliant Standards: FCC, RoHS, WEEE Color: Black TAA Compliant: Yes - Power
Power Consumption Operational: 36 Watt - Software / System Requirements
OS Required: Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.9 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0, Linux 2.4.x or later, Linux LTS versions only - Dimensions & Weight
Width: 5 in Depth: 8.6 in Height: 1 in Weight: 26.45 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 5 - 95% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201404 |
| Part# | STC-ICUSB234858I |
| MFG Part# | ICUSB234858I |
| UPC | 65030878579 |
| Device Type | Serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 921.6 Kbps |
| Form Factor | DIN rail mountable |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Color | Black |
