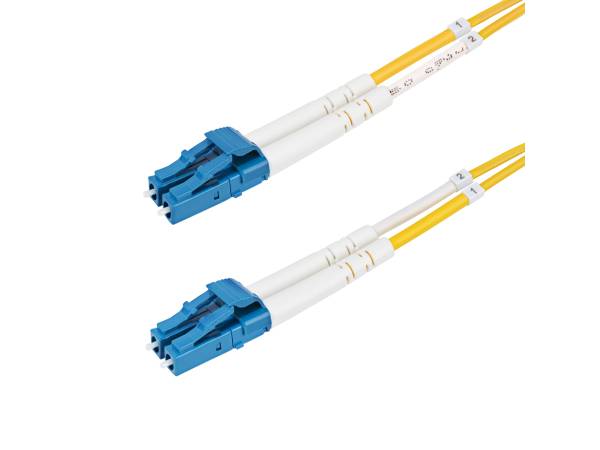

8M (26.2FT) LC TO LC (UPC) OS2 SINGLE MODE DUPLEX FIBER OPTIC CABLE, 9/125 M, 10 7486001
SKU
7486001
CA$36.99
26.2ft LC/LC-UPC OS2 Single Mode Fiber Cable supports 100G networks and CWDM; 9/125um core/cladding; 1260-1625nm Laser Optimized; LSZH jacket w/molded strain reliefs; Bend Radius: 10mm (loaded/unloaded); Insertion Loss: 0.3dB; Return Loss: 55dB
Category: Network Cables
- Primary Information
Product Description: StarTech.com 8m (26.2ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC8M) - patch cable - 8 m - yellow Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Features: Halogen-free, passive adapter, color coded connectors, ceramic ferrule, bend insensitive, low insertion loss, bending radius 10mm, aramid fiber reinforced, up to 10 Gbps, 0.3 dB insertion loss, 55 dB return loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support Length: 8 m Diameter: 0.1 in Core / Cladding Diameter: 9 / 125 micron Connector: 2 x LC/UPC single-mode - male Connector (Second End): 2 x LC/UPC single-mode - male Color: Yellow Manufacturer Warranty: Limited lifetime warranty - General
Network Cable Type: Patch cable - OS1/OS2 Technology: Duplex fiber optic Type of Fiber Optics: Singlemode Jacket Material: Low Smoke Zero Halogen (LSZH) Core / Cladding Diameter: 9 / 125 micron Features: Halogen-free, passive adapter, color coded connectors, ceramic ferrule, bend insensitive, low insertion loss, bending radius 10mm, aramid fiber reinforced, up to 10 Gbps, 0.3 dB insertion loss, 55 dB return loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support Length: 8 m Diameter: 0.1 in Color: Yellow - Connectivity
Connector: 2 x LC/UPC single-mode - male Connector (Second End): 2 x LC/UPC single-mode - male - Miscellaneous
Compliant Standards: WEEE, EMI - Dimensions & Weight (Shipping)
Shipping Width: 7.9 in Shipping Depth: 8.7 in Shipping Height: 0.3 in Shipping Weight: 2.2 oz - Manufacturer Warranty
Service & Support: Limited lifetime warranty - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26121607
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 26121607 |
| Part# | STC-SMDOS2LCLC8M |
| MFG Part# | SMDOS2LCLC8M |
| UPC | 65030901758 |
| Length | 8 m |
| Type | Patch cable - OS1/OS2 |
| Color | Yellow |
