ADPTER 10012710
SKU
10012710
Category: Repeaters & Transceivers
- Primary Information

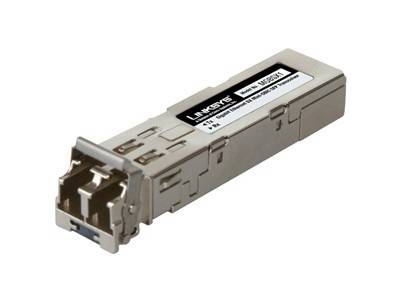

Weight (Approximate): 20 Fiber Mode Supported: Multi-mode Media Type Supported: Optical Fiber Maximum Data Transfer Rate: 1 Fiber Optic Cable Standard: 62.5/125 µm Brand Name: Cisco Product Name: MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver Product Model: MGBSX1 Manufacturer: Cisco Systems, Inc Additional Information: - Transmitter Spec: Power: -9.5 to -4 dBm
- Reciever Spec: Sensitivity: -20 to -17dBm
- Input Power: -20 to -17 dBm
- Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
- Wavelength: 850 nm (850nm TYP., 830-860nm) MMF
Modular Bandwidth for MMF:
- 62.5/125um MMF at 160 MHz/km, up to 220m
- 62.5/125um MMF at 200 MHz/km, up to 275m
- 50/125um MMF at 400 MHz/km, up to 500m
- 50/125um MMF at 500 MHz/km, up to 550m
Interfaces/Ports Details: 1 x LC 1000Base-SX Maximum Distance Supported: 1804.46 ft (550000 mm) Marketing Information: This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.
Manufacturer Website Address: http://www.cisco.com Manufacturer Part Number: MGBSX1 Compatibility: - SR2024 - 24-Port 10/100/1000 Gigabit Switch
- SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
- SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
- SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
- SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Product Type: SFP (mini-GBIC) Application/Usage: Data Networking - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | CISCO SYSTEMS |
|---|---|
| UNSPSC | 43222608 |
| Part# | CSC-MGBSX1 |
| MFG Part# | MGBSX1 |
| UPC | 745883558766 |
| Product Type | SFP (mini-GBIC) |
