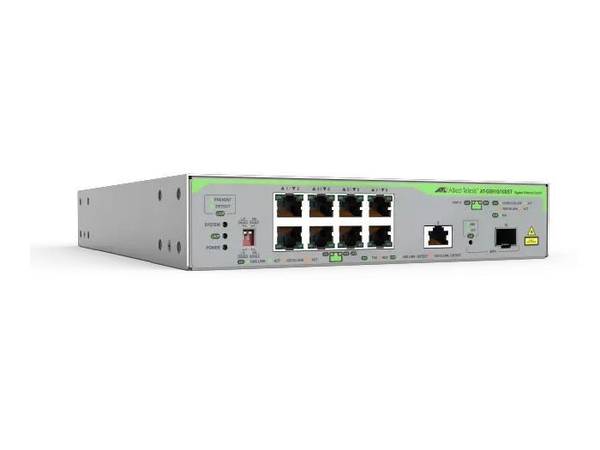

ALLIED 1GB UNMANAGED SWITCH W/ 10G UPLINK 8X 10/100M/1G-T, 1X 100M/1/2.5/5/10G-T, 1X SFP+ WITH INTERNAL PSU 7229167
SKU
7229167
CA$854.82
1GB UNMANAGED SWITCH W/ 10G UPLINK 8X 10/100M/1G-T, 1X 100M/1/2.5/5/10G-T, 1X SFP+ WITH INTERNAL PSU
Category: Hubs & Switches
- Primary Information
Product Description: Allied Telesis CentreCOM AT-GS910/10XST - switch - 10 ports - unmanaged - rack-mountable Device Type: Switch - 10 ports - unmanaged Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 + 1 x 100/1000/2.5G/5G/10G (uplink) + 1 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Performance: Switching fabric bandwidth: 30 Gbps ¦ Forwarding rate: 41.66 Mpps ¦ Latency (100 Mbps): 7.1 µs ¦ Latency (1 Gbps): 3.5 µs ¦ Latency (10 Gbps): 2.9 µs Capacity: Packet buffer size: 1.5 MB MAC Address Table Size: 16K entries Jumbo Frame Support: 12KB Features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), fanless, built-in DIP switch, metal housing, BPDU, Loop Guard, EEE, LDF support, CSMA/CD, non-blocking architecture, eco-friendly button Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 8.3 in x 10.8 in x 1.7 in Weight: 4.19 lbs Localization: United States Manufacturer Warranty: 5-year warranty - General
Device Type: Switch - 10 ports - unmanaged Enclosure Type: Rack-mountable Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 + 1 x 100/1000/2.5G/5G/10G (uplink) + 1 x 1 Gigabit / 10 Gigabit SFP+ (uplink) Performance: Switching fabric bandwidth: 30 Gbps ¦ Forwarding rate: 41.66 Mpps ¦ Latency (100 Mbps): 7.1 µs ¦ Latency (1 Gbps): 3.5 µs ¦ Latency (10 Gbps): 2.9 µs Capacity: Packet buffer size: 1.5 MB MAC Address Table Size: 16K entries Jumbo Frame Support: 12KB Authentication Method: Extensible Authentication Protocol (EAP) Features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), fanless, built-in DIP switch, metal housing, BPDU, Loop Guard, EEE, LDF support, CSMA/CD, non-blocking architecture, eco-friendly button Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz Status Indicators: Port duplex mode, power, system, link/activity, loop - Expansion / Connectivity
Interfaces: 8 x 1000Base-T RJ-45 ¦ 1 x 100/1000/2.5G/5G/10GBase-T RJ-45 uplink ¦ 1 x 1/10GBase-X SFP+ uplink - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) - Miscellaneous
Compliant Standards: Plug and Play, EN 61000-3-2, NOM, EN 61000-3-3, cULus, FCC Part 15 B Class A, EMI, EAC, China RoHS, RCM, EN 55024:2010, CISPR 32:2012 Class A, ICES-003:2016 issue 6 Class A, EU RoHS, UL 62368-1, AS/NZS CISPR32:2013 Class A, EN 55035:2017, IEC/EN 62368-1, UKCA, EN 55032:2012/AC:2013 Class A Localization: United States - Dimensions & Weight
Width: 8.3 in Depth: 10.8 in Height: 1.7 in Weight: 4.19 lbs - Dimensions & Weight (Shipping)
Shipping Width: 10.2 in Shipping Depth: 16.9 in Shipping Height: 3.9 in Shipping Weight: 5.51 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 90% (non-condensing) Min Storage Temperature: -13 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | ALLIED TELESIS |
|---|---|
| UNSPSC | 43222612 |
| Part# | ALT-AT-GS910/10XST-10 |
| MFG Part# | AT-GS910/10XST-10 |
| UPC | 767035224022 |
| Device Type | Switch - 10 ports - unmanaged |
| Enclosure Type | Rack-mountable |
