ALLIED IEEE 802.11AX WIRELESS ACCESS POINT WITH DUAL BAND RADIOS AND EMBEDDED ANTENNA. THIS MODEL SUPPORTS WI-FI 6 TECHNOLOGY WITH 8 SPATIAL STREAMS 7372612

SKU
7372612

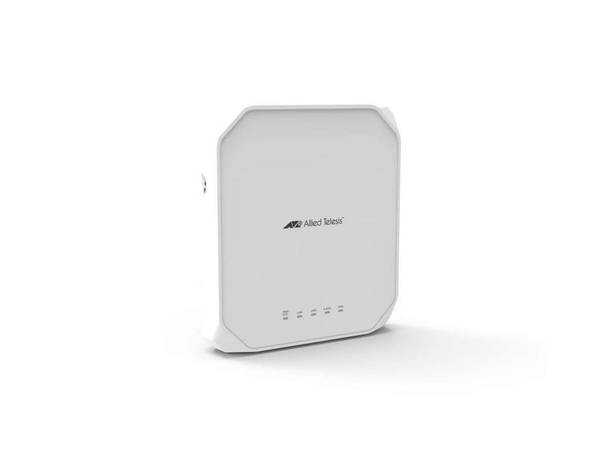

main product photo
CA$2,431.67
IEEE 802.11AX WIRELESS ACCESS POINT WITH DUAL BAND RADIOS AND EMBEDDED ANTENNA. THIS MODEL SUPPORTS WI-FI 6 TECHNOLOGY WITH 8 SPATIAL STREAMS FOR 5GHZ BAND. AC POWER ADAPTER NOT INCLUDED. FOR CANADA MARKET.





buy now pay later
Category: Network Devices
  • Primary Information
    Product Description: Allied Telesis AT TQ6702 GEN2 - wireless access point - Wi-Fi 6
    Device Type: Wireless access point
    Form Factor: Desktop / wall / ceiling mountable
    Localization: Canada
    Data Link Protocol: Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
    Frequency Band: 2.4 GHz, 5 GHz
    Capacity: Spatial streams: up to 8 ¦ Maximum MAC filters: 1024
    Power Over Ethernet (PoE) Supported: PoE
    Dimensions (WxDxH): 9.4 in x 7.9 in x 1.8 in
    Weight: 2.65 lbs
    Manufacturer Warranty: 5-year warranty
  • General
    Device Type: Wireless access point
    Width: 9.4 in
    Depth: 7.9 in
    Height: 1.8 in
    Weight: 2.65 lbs
    Localization: Canada
  • Networking
    Form Factor: Desktop / wall / ceiling mountable
    Connectivity Technology: Wireless
    Data Transfer Rate: 4.8 Gbps
    Line Coding Format: DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA, DSSS
    Data Link Protocol: Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
    Spread Spectrum Method: OFDM, DSSS, OFDMA
    Network / Transport Protocol: NTP, DHCP, CSMA/CA, HTTP, HTTPs
    Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, NTP, DHCP, Syslog
    Frequency Band: 2.4 GHz, 5 GHz
    Capacity: Spatial streams: up to 8 ¦ Maximum MAC filters: 1024
    Features: Flow control, load balancing, Wireless Distribution System (WDS) support, firmware upgradable, Wi-Fi Multimedia (WMM) support, hidden SSID, Captive Portal, 802.1x authentication, Virtual Access Points (VAP), MU-MIMO technology, band steering, Fast Roaming, seamless roaming, Airtime Fairness, client isolation, Neighbor AP detection, Multi-Dimensional Exchange (MDX), Autonomous Wave Control (AWC), AWC-Channel Blanket (AWC-CB), AWC-Smart Connect (AWC-SC), zero-wait DFS, Spatial Reuse (RS)
    Encryption Algorithm: AES, 128-bit WEP, 64-bit WEP, TKIP, AES-CCMP, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal, CNSA
    Authentication Method: RADIUS
    Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6
  • Antenna
    Antenna: Internal
    Directivity: Omni-directional
  • Expansion / Connectivity
    Interfaces: 2 x 2.5 GBase-T (PoE) - RJ-45
  • Miscellaneous
    Compliant Standards: Plug and Play, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, IC, EN 61000-4-5, UL 2043, FCC, EN 61000-4-11, EN 61000-4-8, AS/NZS 4268, FCC CFR47 Part 15 C, VCCI Class B, RCM, EN 300 328, EN 61000-3-2 Class A, EN 62368-1, EN 301 893, FCC CFR47 Part 15 E, UL 62368-1, EN55032 Class B, EN55035, EN60601-1-2
  • Power
    Power Over Ethernet (PoE) Supported: PoE
  • Manufacturer Warranty
    Service & Support: Limited warranty - 5 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 5 - 90% RH (non-condensing)
  • Special Feature
    COO: CHINA
  • UNSPSC Code
    UNSPSC Code: 43222631
More Information
BRANDS ALLIED TELESIS
UNSPSC 43222631
Part# ALT-AT-TQ6702 GEN2-03
MFG Part# AT-TQ6702 GEN2-03
UPC 767035225203
Device Type Wireless access point
Connectivity Technology Wireless
Data Transfer Rate 4.8 Gbps
Form Factor Desktop / wall / ceiling mountable
Data Link Protocol 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz, 5 GHz
Remote Management Protocol DHCP, HTTP, HTTPS, NTP, SNMP 1, SNMP 2c, SNMP 3, Syslog
Encryption Algorithm 128-bit WEP, 64-bit WEP, AES, AES-CCMP, CNSA, TKIP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
