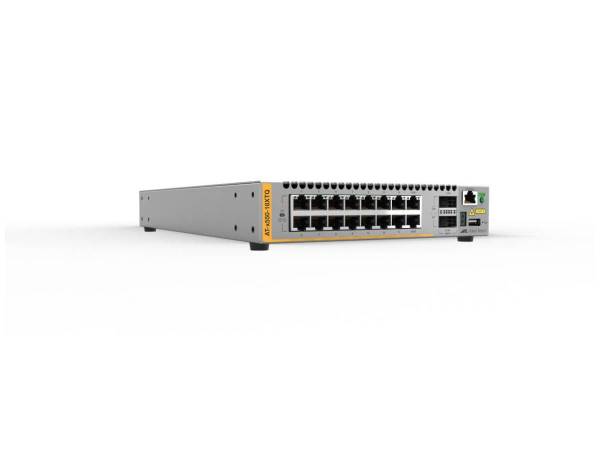

ALLIED L3 STACKABLE SWITCH, 16X 1G/10G-T, 2X QSFP+ PORTS AND A SINGLE FIXED PSU, US POWER CORD. PURCHASING SERVICE NEEDED. 5990564
SKU
5990564
CA$10,808.51
x550 Series - 10GBASE-T16, QSFP+2(40Gbps or 4 x 10Gbps mode). Max4 mixed stack available.Fixed PWR and FAN. Rack mount kit (can be mount 1 switch in a row) is included in the unit. AT-RKMT-J15 (can be mount 2 switches in a row) can be ordered separately.
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: x550 Series Form Factor: 1RU Connectivity Technology: Wired Data Transfer Rate: 40 Gbps Networking / Ports Qty: 20 Data Link Protocol: Gigabit Ethernet Status Indicators: LED Indicators Networking Compliant Standards: IEEE 802.1x, IEEE 802.2, IEEE 802.3, EEE 802.3an Power / Device Type: Power Supply Media Layer Supported: Layer 3 Power / Installed Qty: 1 Uplink Port: 2 40G QSFP Ports Max Power Consumption: 128 Watt Power / Voltage Required: 90 to 260V Features: AlliedWare Plus Enterprise-class operating system; Ethernet Protection Switched Ring (EPSRing) supports resilient high-speed ring-based networks; SDN-ready with industry-certified OpenFlow v1.3; sFlow enables network performance monitoring and optimization; FIPS 140-2 certified - Network
Power Over Ethernet (PoE) Support: NONE PoE Power Consumption: NONE MAC Address Table Size: Up to 16K Jumbo Frame Support: 9KB Remote Management Protocol: SNMP; SSH; Telnet; DHCP Routing Protocol: IPv4 and IPv6, OSPF, RIP, BGP Encryption Algorithm: AES; MACsec; SSL; 3DES Authentication Method: RADIUS, TACACS+ Interfaces: 16 1G/10G (RJ-45) Copper Ports; 2 40G QSFP Ports, USB, - Interfaces / Ports
Interfaces: 16 1G/10G (RJ-45) Copper Ports; 2 40G QSFP Ports, USB, - Dimensions&Miscellaneous
Width: 8.3 Inch Depth: 13.6 Inch Height: 1.7 Inch Weight: 3.1 Kg - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 45 Celsius Min Storage Temperature: -25 Celsius Max Storage Temperature: 70 Celsius COO: CHINA / INDONESIA - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | ALLIED TELESIS |
|---|---|
| UNSPSC | 43222612 |
| Part# | ALT-AT-X550-18XTQ-10 |
| MFG Part# | AT-X550-18XTQ-10 |
| UPC | 767035210100 |
| Network Device Type | Switch |
| Power / Installed Qty | 1 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 40 Gbps |
| Form Factor | 1RU |
| Networking / Ports Qty | 20 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | DHCP, SNMP, SSH, Telnet |
| Encryption Algorithm | 3DES, AES, MACsec, SSL |
