ANTEC NEOECO FULLY MODULAR GOLD 1000W, ATX 3.0, WHITE 7 YEARS WARRANTY 7442668
SKU
7442668
CA$190.95

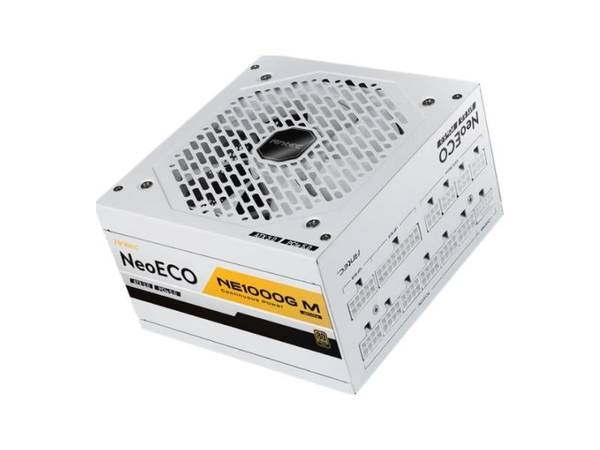

ANTEC NEOECO FULLY MODULAR GOLD 1000W, ATX 3.0, WHITE 7 YEARS WARRANTY
Category: Power Supplies
- Primary Information
Product Description: Antec NE1000G M - power supply - 1000 Watt Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V 3.0 80 PLUS Certification: 80 PLUS Gold Weight: 3.62 lbs Input Voltage: AC 100-240 V Output Voltage: +3.3, +5, ±12 V Power Capacity: 1000 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR ¦ 2 x power 8 pin with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x Molex Modular Cable Management: Yes Cooling System: 120 mm fan Color: White Dimensions (WxDxH): 5.9 in x 5.5 in x 3.4 in Manufacturer Warranty: 10-year warranty - General
Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V 3.0 PSU Form Factor: ATX Color: White - Power Device
Input Voltage: AC 100-240 V Frequency Required: 50 - 60 Hz Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 16(12+4)pin PCIE 5.0 12VHPWR ¦ 2 x power 8 pin with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 4 x Molex Output Voltage: +3.3, +5, ±12 V Power Capacity: 1000 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A Modular Cable Management: Yes 80 PLUS Certification: 80 PLUS Gold - Miscellaneous
Cooling System: 120 mm fan Features: Fully modular, overcurrent protection, overvoltage protection, undervoltage protection, short-circuit protection, overpower protection, overheat protection, no load operation protection, Surge & Inrush Protection (SIP), fluid dynamic bearing cooling fan, Zero RPM fan mode, CircuitShield, PhaseWave design, DC-DC technology, LLC resonant converter technology, High Quality Capacitor Compliant Standards: cTUVus, TUV, CB, RCM, FCC, BIS, BSMI, KC, UKCA, ICES - Manufacturer Warranty
Service & Support: Limited warranty - 10 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F - Dimensions & Weight
Width: 5.9 in Depth: 5.5 in Height: 3.4 in Weight: 3.62 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 10.27 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121004
| BRANDS | ANTEC |
|---|---|
| UNSPSC | 39121004 |
| Part# | ANT-NE1000GM WHITE ATX3.0 |
| MFG Part# | NE1000G M WHITE ATX 3.0 |
| UPC | 761345117883 |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| 80 PLUS Certification | 80 PLUS Gold |
| Color | White |
