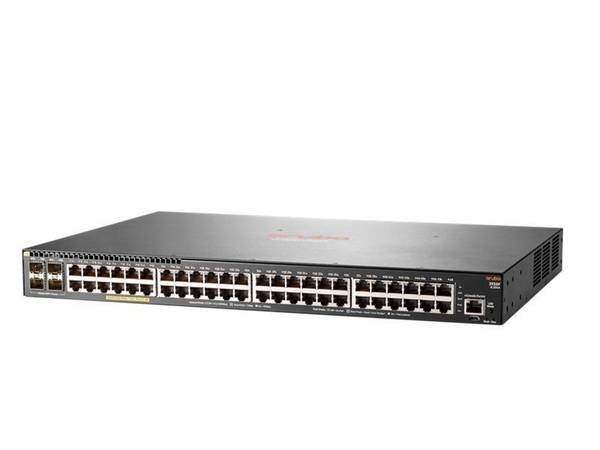

Network Device Type: | Switch |
Model: | 2930F |
Form Factor: | 1U |
Connectivity Technology: | Wired |
Data Transfer Rate: | 10 Gbps |
Networking / Ports Qty: | 53 |
Data Link Protocol: | Gigabit Ethernet |
Processor / Type: | ARM Cortex A9 |
RAM / Total Installed Size: | 1 GB |
Flash Memory / Installed Size: | 4 GB |
Networking Compliant Standards: | 802.1w, 802.1s, 802.1p |
Power / Device Type: | Power Supply |
Media Layer Supported: | Layer 2, Layer 3 |
Uplink Port: | 4 |
Max Power Consumption: | 459 Watt |
Power / Voltage Required: | 100-127 VAC / 200-240 VAC |
Features: | The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks. |
Power Over Ethernet (PoE) Support: | Y |
PoE Power Consumption: | 370 W |
MAC Address Table Size: | 32768 entries |
Jumbo Frame Support: | Y |
Remote Management Protocol: | SNMP; RMON; Telnet |
Routing Protocol: | OSPF, RIP, Static |
Encryption Algorithm: | SSL |
Authentication Method: | RADIUS, 802.1X, MAC |
SFP+ Ports: | 4 |
Interfaces: | RJ-45 autosensing 10/100/1000 PoE+;SFP+; serial console port |
Interfaces: | RJ-45 autosensing 10/100/1000 PoE+;SFP+; serial console port |
SFP+ Ports: | 4 |
Width: | 17.42 Inch |
Depth: | 11.98 Inch |
Height: | 1.73 Inch |
Weight: | 4.46 Kg |
Service & Support Type: | Limited Lifetime Warranty |
Min Operating Temperature: | 0 Celsius |
Max Operating Temperature: | 45 Celsius |
Min Storage Temperature: | -40 Celsius |
Max Storage Temperature: | 70 Celsius |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222612 |
BRANDS | HEWLETT PACKARD ENTERPRISE |
---|---|
UNSPSC | 43222612 |
Part# | HPE-JL256A#ABA |
MFG Part# | JL256A#ABA |
UPC | 190017007250 |
Flash Memory / Installed Size | 4 GB |
Network Device Type | Switch |
RAM / Total Installed Size | 1 GB |
Connectivity Technology | Wired |
Data Transfer Rate | 10 Gbps |
Form Factor | 1U |
Processor / Type | ARM Cortex A9 |
Networking / Ports Qty | 53 |
Data Link Protocol | Gigabit Ethernet |
Power / Device Type | Power Supply |
Remote Management Protocol | RMON, SNMP, Telnet |
Encryption Algorithm | SSL |
