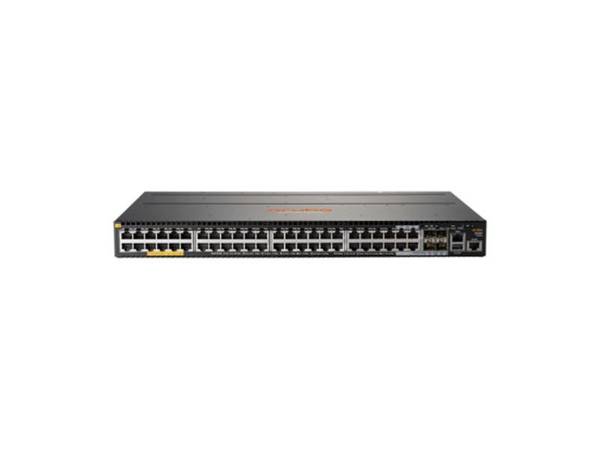

ARUBA 2930M 48G POE+ 1-SLOT SWTCH 5862184
SKU
5862184
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: Aruba 2930M Switch Series Connectivity Technology: Wired/Wireless Data Transfer Rate: 1 Gbps Networking / Ports Qty: 48 Data Link Protocol: Gigabit Ethernet VLAN IP interfaces: VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously Processor / Type: ARM Cortex A9 RAM / Total Installed Size: 1 GB Flash Memory / Installed Size: 4 GB Networking Compliant Standards: IEEE 802.3 Type 10BASE-T,IEEE 802.3u Type 100BASETX,IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+ Power / Device Type: Power Supply Power Consumption Operational: 470 Watt Max Power Consumption: 2 Watt Power / Voltage Required: 100 - 127 / 200 - 240 VAC, rated or 110-127 / 200-240VAC, Rated depending on power supply - Network
Power Over Ethernet (PoE) Support: IEEE 802.3at Power over Ethernet (PoE+) provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments PoE Power Consumption: Up to 1440 Watts MAC Address Table Size: 32768 entries Jumbo Frame Support: Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9220 bytes Remote Management Protocol: SNMP Routing Protocol: Layer 3 Dynamic Encryption Algorithm: MD5 Authentication Method: Uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry standards; Supports web-based authentication; Supports MAC-based client authentication 10/100/1000BASE-T Ports: 44 Interfaces: (44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot - Interfaces / Ports
Interfaces: (44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot VLAN IP interfaces: VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously 10/100/1000BASE-T Ports: 44 - Dimensions&Miscellaneous
Width: 1.73 Inch Depth: 17.42 Inch Height: 12.77 Inch Weight: 10.25 lbs. - Service&Support
Service & Support Type: Limited Lifetime Warranty - Special Feature
Min Operating Temperature: 0 Celsius(up to 5000 Feet) Max Operating Temperature: 55 Celsius Min Storage Temperature: -40 Celsius(up to 15000 Feet) Max Storage Temperature: 70 Celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-JL322A |
| MFG Part# | JL322A |
| UPC | 190017071251 |
| Flash Memory / Installed Size | 4 GB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 1 GB |
| 10/100/1000BASE-T Ports | 44 |
| Connectivity Technology | Wired/Wireless |
| Data Transfer Rate | 1 Gbps |
| Processor / Type | ARM Cortex A9 |
| Networking / Ports Qty | 48 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | SNMP |
| Encryption Algorithm | MD5 |
