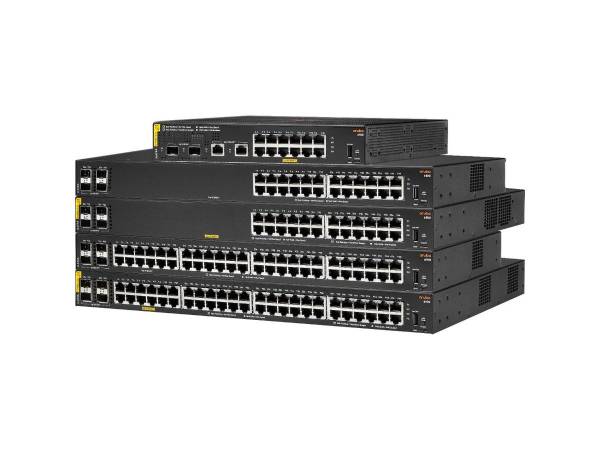

ARUBA 6100 24G 4SFP+ SWCH 6677866
SKU
6677866
Category: Hubs & Switches
- Primary Information
Product Description: HPE Aruba 6100 24G 4SFP+ Switch - switch - 28 ports - managed - rack-mountable Device Type: Switch - 28 ports - managed - stackable Enclosure Type: Side to side airflow rack-mountable 1U Subtype: 10 Gigabit Ethernet Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ Performance: Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs Capacity: Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 MAC Address Table Size: 8192 entries Routing Protocol: IGMPv2, IGMPv3 Features: Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az Power: AC 230 V (50/60 Hz) Dimensions (WxDxH): 17.4 in x 7.9 in x 1.7 in Weight: 5.78 lbs Localization: English / United States Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 28 ports - managed - stackable Enclosure Type: Side to side airflow rack-mountable 1U Subtype: 10 Gigabit Ethernet Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ Performance: Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs Capacity: Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 MAC Address Table Size: 8192 entries Routing Protocol: IGMPv2, IGMPv3 Encryption Algorithm: SSL Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features: Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing Compliant Standards: IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az Processor: 1 x ARM A9: 1.016 GHz RAM: 4 GB DDR3 SDRAM Flash Memory: 16 GB - Expansion / Connectivity
Interfaces: 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A - Power
Power Device: Internal power supply Power Provided: 65 Watt Voltage Required: AC 230 V (50/60 Hz) Power Consumption Operational: 15.4 Watt - Miscellaneous
Compliant Standards: FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792 Localization: English / United States - Dimensions & Weight
Width: 17.4 in Depth: 7.9 in Height: 1.7 in Weight: 5.78 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 15 - 95% (non-condensing) Humidity Range Storage: 15 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-JL678A#ABA |
| MFG Part# | JL678A#ABA |
| UPC | 190017348711 |
| Device Type | Switch - 28 ports - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | SSL |
