ARUBA 6100 24G CL4 4SFP+ SWCH 6677865
SKU
6677865
CA$5,255.00
Only 5 left

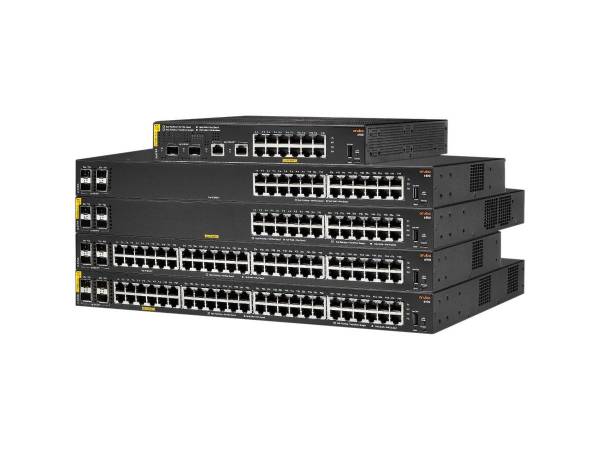

Switch - HPE Aruba Networking CX 6100 Switch - 1U - Wired - 1Gbps - Networking / Ports Qty: 24 - Gigabit Ethernet - ARM Cortex A9 - 4GB RAM - 16GB Flash Memory - 100-127 VAC / 200-240 VAC - 24x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports, 1x USB-C Console Port, 1x USB Type-A Host port - Limited Lifetime Warranty
Category: Hubs & Switches
- Primary Information
Product Description: HPE Aruba 6100 24G Class4 PoE 4SFP+ - switch - 28 ports - managed - rack-mountable Device Type: Switch - 28 ports - managed - stackable Enclosure Type: Side to side airflow rack-mountable 1U Subtype: 10 Gigabit Ethernet Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ Power Over Ethernet (PoE): PoE+ PoE Budget: 370 W Performance: Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs Capacity: Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 MAC Address Table Size: 8192 entries Routing Protocol: IGMPv2, IGMPv3 Features: DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x Power: AC 100-127/200-240 V (50/60 Hz) Dimensions (WxDxH): 17.4 in x 10.6 in x 1.7 in Weight: 9.24 lbs Localization: English / United States Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 28 ports - managed - stackable Enclosure Type: Side to side airflow rack-mountable 1U Subtype: 10 Gigabit Ethernet Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ Power Over Ethernet (PoE): PoE+ PoE Budget: 370 W Performance: Switching capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 µs ¦ Latency (10 Gbps): 1.8 µs Capacity: Switched virtual interfaces (SVIs): 16 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 256 ¦ IPv6 ACL entries (ingress): 128 ¦ MAC ACL entries (ingress): 256 MAC Address Table Size: 8192 entries Routing Protocol: IGMPv2, IGMPv3 Encryption Algorithm: SSL Authentication Method: Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS Features: DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x Processor: 1 x ARM A9: 1.016 GHz RAM: 4 GB DDR3 SDRAM Flash Memory: 16 GB - Expansion / Connectivity
Interfaces: 24 x 10/100/1000 Base-T RJ-45 ¦ 4 x 1/10Gbit LAN SFP+ ¦ 1 x USB-C console ¦ 1 x USB Type A - Power
Power Device: Internal power supply Power Provided: 500 Watt 2.3 A Voltage Required: AC 100-127/200-240 V (50/60 Hz) Power Consumption Operational: 22.9 Watt - Miscellaneous
Compliant Standards: IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674 Localization: English / United States - Dimensions & Weight
Width: 17.4 in Depth: 10.6 in Height: 1.7 in Weight: 9.24 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 15 - 95% (non-condensing) Humidity Range Storage: 15 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-JL677A#ABA |
| MFG Part# | JL677A#ABA |
| UPC | 190017348476 |
| Device Type | Switch - 28 ports - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Encryption Algorithm | SSL |
