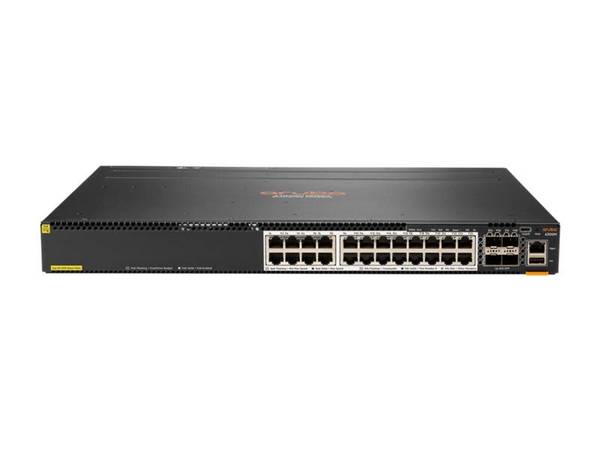

ARUBA 6300M 24SR5 CL6 POE 4SFP56 SWCH 6462662
SKU
6462662
CA$23,804.00
Switch - Aruba CX 6300 Switch Series - 1U - Wired - 1Gbps - Networking / Ports Qty: 31 - Gigabit Ethernet - ARM Cortex A72 - 8GB RAM - 32GB Flash Memory - 110-120/208-240VAC (JL670A PSU), 100-240V AC (JL086A and JL087A PSU)
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: Aruba CX 6300 Switch Series Form Factor: 1U Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 31 Data Link Protocol: Gigabit Ethernet Processor / Type: ARM Cortex A72 RAM / Total Installed Size: 8 GB Flash Memory / Installed Size: 32 GB Power / Device Type: Power Supply Power Consumption Operational: 139 Watt Max Power Consumption: 131 Watt Power / Voltage Required: 110-120/208-240VAC (JL670A PSU), 100-240V AC (JL086A and JL087A PSU) Features: Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. Now supporting MACsec 256, PTP, AVB and LRM. - Network
Power Over Ethernet (PoE) Support: yes PoE Power Consumption: Up to 1449W of Class 6 PoE Power with new 1600W JL670A PSU Remote Management Protocol: SNMP Routing Protocol: Layer 3 Advanced SFP Ports: 4 Interfaces: (24) SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port, (4) 1/10/25/50G SFP ports - Interfaces / Ports
Interfaces: (24) SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port, (4) 1/10/25/50G SFP ports SFP Ports: 4 - Dimensions&Miscellaneous
Width: 1.73 Inch Depth: 17.4 Inch Height: 15.2 Inch Weight: 11.94 lbs. - Service&Support
Service & Support Type: See http://www.hpe.com/networking/warranty - Special Feature
Min Operating Temperature: 0C Max Operating Temperature: 45 C Min Storage Temperature: -40 C Max Storage Temperature: 70 C COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-JL660A |
| MFG Part# | JL660A |
| UPC | 190017339429 |
| Flash Memory / Installed Size | 32 GB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 8 GB |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | 1U |
| Processor / Type | ARM Cortex A72 |
| Networking / Ports Qty | 31 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | SNMP |
