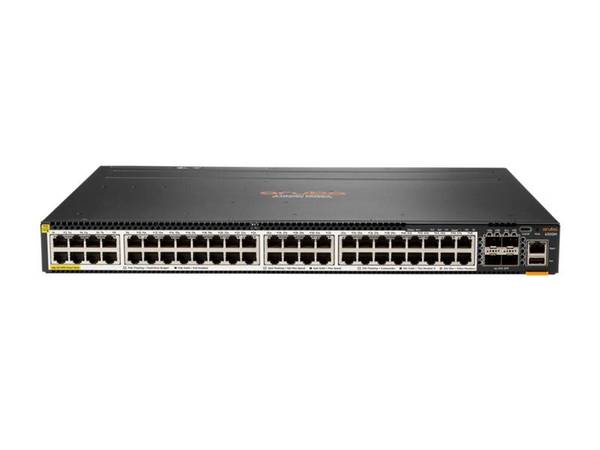

ARUBA 6300M 48SR5 CL6 POE 4SFP56 SWCH 6462661

SKU
6462661
CA$27,332.00
Switch - Aruba CX 6300 Switch Series - 1U - Wired - 1Gbps - Networking / Ports Qty: 55 - Gigabit Ethernet - ARM Cortex A72 - 8GB RAM - 32GB Flash Memory - 110-120/208-240VAC (JL670A PSU), 100-240V AC (JL086A and JL087A PSU)





buy now pay later
  • Primary Information
    Network Device Type: Switch
    Model: Aruba CX 6300 Switch Series
    Form Factor: 1U
    Connectivity Technology: Wired
    Data Transfer Rate: 1 Gbps
    Networking / Ports Qty: 55
    Data Link Protocol: Gigabit Ethernet
    Processor / Type: ARM Cortex A72
    RAM / Total Installed Size: 8 GB
    Flash Memory / Installed Size: 32 GB
    Power / Device Type: Power Supply
    Power Consumption Operational: 201 Watt
    Max Power Consumption: 193 Watt
    Power / Voltage Required: 110-120/208-240VAC (JL670A PSU), 100-240V AC (JL086A and JL087A PSU)
    Features: Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. Now supporting MACsec 256, PTP, AVB and LRM.
  • Network
    Power Over Ethernet (PoE) Support: yes
    PoE Power Consumption: Up to 2880W of Class 6 PoE Power with two new 1600W JL670A PSUs
    Remote Management Protocol: SNMP
    Routing Protocol: Layer 3 Advanced
    SFP Ports: 4
    Interfaces: (48) SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port, (4) 1/10/25/50G SFP ports
  • Interfaces / Ports
    Interfaces: (48) SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port, (4) 1/10/25/50G SFP ports
    SFP Ports: 4
  • Dimensions&Miscellaneous
    Width: 1.73 Inch
    Depth: 17.4 Inch
    Height: 15.2 Inch
    Weight: 13.27 lbs.
  • Service&Support
    Service & Support Type: See http://www.hpe.com/networking/warranty
  • Special Feature
    Min Operating Temperature: 0 C
    Max Operating Temperature: 45 C
    Min Storage Temperature: -40 C
    Max Storage Temperature: 70 C
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
BRANDSHEWLETT PACKARD ENTERPRISE
UNSPSC43222612
Part#HPE-JL659A
MFG Part#JL659A
UPC190017339405
Flash Memory / Installed Size32 GB
Network Device TypeSwitch
RAM / Total Installed Size8 GB
Connectivity TechnologyWired
Data Transfer Rate1 Gbps
Form Factor1U
Processor / TypeARM Cortex A72
Networking / Ports Qty55
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply
Remote Management ProtocolSNMP
