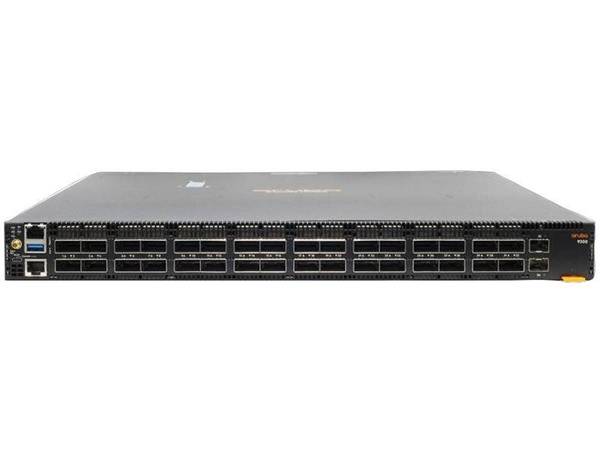

ARUBA 9300-32D 32D2XF FB 6F2AC BDL PDU 7265056
SKU
7265056
Category: Hubs & Switches
- Primary Information
Product Description: HPE Aruba CX 9300-32D 32-port 100/200/400G QSFP-DD 2-port 10G SFP+ Switch - switch - 32 ports - managed - rack-mountable Device Type: Switch - 32 ports - L3 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 32 x 100/200/400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+ Performance: Switching capacity: 12.8 Tbps ¦ Throughput: 5 Bpps Capacity: Packet buffer size: 132 MB ¦ IPv4 host table capacity: 163840 ¦ IPv6 host table capacity: 81920 ¦ IPv4 unicast direct routes: 65536 ¦ IPv6 unicast direct routes: 32768 ¦ MAC addresses: 81920 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 groups (Multicast): 8192 ¦ IPv6 groups (Multicast): 4096 Routing Protocol: OSPF, BGP-4, RIP-2, BGP, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng Remote Management Protocol: SNMP 3, SNMP 2c Features: sFlow, VRRP support, DCBX support, BFD, Rapid PVST+, ERPS, PFC, VXLAN, Cisco IPSLA, ETS, VSX, UDLD Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s Power: AC 100-127/200-240 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 17.3 in x 23.2 in x 1.7 in Weight: 26.12 lbs Pricing Type: BTO Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 32 ports - L3 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 32 x 100/200/400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+ Performance: Switching capacity: 12.8 Tbps ¦ Throughput: 5 Bpps Capacity: Packet buffer size: 132 MB ¦ IPv4 host table capacity: 163840 ¦ IPv6 host table capacity: 81920 ¦ IPv4 unicast direct routes: 65536 ¦ IPv6 unicast direct routes: 32768 ¦ MAC addresses: 81920 ¦ IGMP groups: 8192 ¦ MLD groups: 8192 ¦ IPv4 groups (Multicast): 8192 ¦ IPv6 groups (Multicast): 4096 Routing Protocol: OSPF, BGP-4, RIP-2, BGP, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng Remote Management Protocol: SNMP 3, SNMP 2c Features: sFlow, VRRP support, DCBX support, BFD, Rapid PVST+, ERPS, PFC, VXLAN, Cisco IPSLA, ETS, VSX, UDLD Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s Processor: 1 D-1537: 1.7 GHz RAM: 32 GB SDRAM Flash Memory: 128 GB - Expansion / Connectivity
Interfaces: 32 x 100/200/400Gbit LAN QSFP-DD ¦ 2 x 1/10Gbit LAN SFP+ ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB) ¦ 1 x management - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: N+1 Voltage Required: AC 100-127/200-240 V (50/60 Hz) Power Consumption Stand by: 210 Watt - Miscellaneous
Included Accessories: Rack kit (2 post), 6 fan trays Rack Mounting Kit: Included Compliant Standards: EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, AS/NZS, EN 50581:2012, ICES-003 issue 5, EN 55032:2015, CISPR 32:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, IEC 60825-1:2014 Class 1, EN 55024:2015, UL 62368-1 Third Edition, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, EN 62368-1:2018+A11:2020, IEC 62368-1:2018 Third Edition, CAN/CSA-C22.2 No. 62368-1.19 Third Edition, IEC 17025, ISTA 3C, CISPR 24:2015, VCCI 32:2016 Class A, CNS 13483, FCC CFR47 Part 15 2010 Class A Pricing Type: BTO - Dimensions & Weight
Width: 17.3 in Depth: 23.2 in Height: 1.7 in Weight: 26.12 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R9A29A#B2B |
| MFG Part# | R9A29A#B2B |
| UPC | 190017563145 |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Remote Management Protocol | SNMP 2c, SNMP 3 |
