ARUBA AP-515 (US) UNIFIED AP 6702032
SKU
6702032
CA$2,140.00

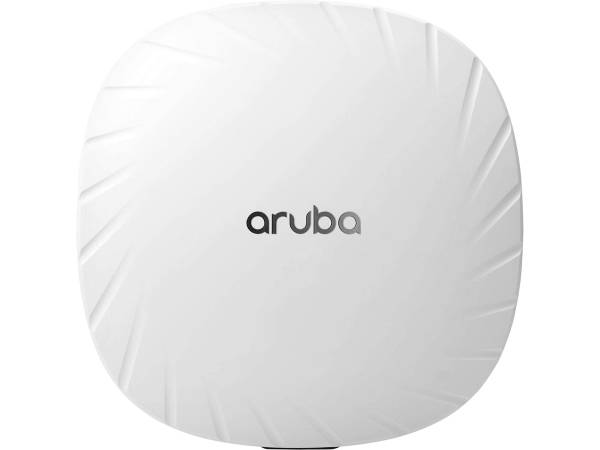

HPE Q9H63A Aruba Networking AP-515 (US) Dual Radio 4 x 4:4 + 2 x 2:2 802.11ax Internal Antennas Unified Campus AP - Limited lifetime warranty
Category: Network Devices
- Primary Information
Product Description: HPE Aruba AP-515 (US) - Campus - wireless access point - Wi-Fi 5 Device Type: Wireless access point Form Factor: In-ceiling - indoor Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Frequency Band: 2.4 GHz, 5 GHz Performance: Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Peak data rate: 5.4 Gbps Capacity: Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 OS Required: ArubaOS, InstantOS Power Over Ethernet (PoE) Supported: PoE Dimensions (WxDxH): 7.9 in x 7.9 in x 1.8 in Weight: 28.57 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Wireless access point Ruggedized Design: Indoor Width: 7.9 in Depth: 7.9 in Height: 1.8 in Weight: 28.57 oz - Networking
Form Factor: In-ceiling Connectivity Technology: Wireless Line Coding Format: CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Spread Spectrum Method: OFDM, DSSS Frequency Band: 2.4 GHz, 5 GHz Performance: Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Peak data rate: 5.4 Gbps Capacity: Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 Status Indicators: System, status Features: MDI/MDI-X switch, auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, Link Aggregation Control Protocol (LACP), Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, enhanced ClientMatch, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM), Space-Time Block Code, Intelligent Power Monitoring (IPM), SecureJack, Secure Core Technology (SCT), 4x4 MU-MIMO technology, Aruba AirMatch, spectrum analyzer, Target Wait Time (TWT) Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt - Antenna
Antenna: Internal Antenna Qty: 4 Directivity: Omni-directional - Expansion / Connectivity
Interfaces: 1 x HPE Smart Rate - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x serial / console - micro-USB - Miscellaneous
MTBF: 560,000 years Compliant Standards: UL 2043, FCC, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019-1-2, ETS 300 019 Class 2.3 - Power
Power Over Ethernet (PoE) Supported: PoE Power Consumption Operational: 20.8 Watt - Software / System Requirements
OS Required: ArubaOS, InstantOS - Dimensions & Weight (Shipping)
Shipping Width: 9.1 in Shipping Depth: 8.7 in Shipping Height: 2.8 in Shipping Weight: 2.23 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 93% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222631
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222631 |
| Part# | HPE-Q9H63A |
| MFG Part# | Q9H63A |
| UPC | 190017273631 |
| Device Type | Wireless access point |
| Connectivity Technology | Wireless |
| Form Factor | In-ceiling |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
