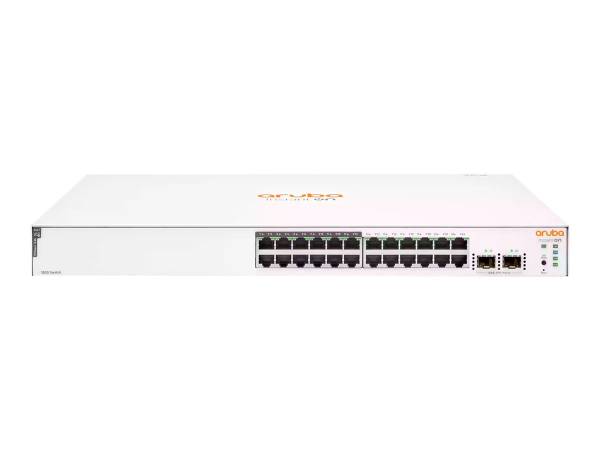

ARUBA ION 1830 24G 2SFP 195W SW 6857621
SKU
6857621
CA$628.00
Aruba Instant On 1830 Switch Series - ARM Cortex-A9 800MHz - 512 MB SDRAM - 256 MB flash - packet buffer: 1.5 MB - 24 RJ-45 10/100/1000 Class 4 PoE ports, 2 SFP 1GbE ports - 100 - 240 VAC - Maximum: 100-127V: 244.6W 200-220V: 237.2W; Idle: 100-127V: 14.5W 200-220V: 13.4W - Limited Lifetime Warranty - U.S. - English localization
Category: Hubs & Switches
- Primary Information
Product Description: HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch - switch - 24 ports - smart - rack-mountable Device Type: Switch - 24 ports - smart Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 195 W Performance: Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps MAC Address Table Size: 16000 entries Jumbo Frame Support: 9216 bytes Routing Protocol: IGMPv2, IGMP Remote Management Protocol: SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP Features: Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, STP support, event log, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud managed, 1.5MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 17.4 in x 10 in x 1.7 in Weight: 7.65 lbs Localization: English / United States Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 24 ports - smart Enclosure Type: Desktop, rack-mountable 1U Subtype: Gigabit Ethernet Ports: 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP Power Over Ethernet (PoE): PoE+ PoE Budget: 195 W Performance: Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps MAC Address Table Size: 16000 entries Jumbo Frame Support: 9216 bytes Routing Protocol: IGMPv2, IGMP Remote Management Protocol: SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP Encryption Algorithm: SSL Features: Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, STP support, event log, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud managed, 1.5MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az Processor: 1 x ARM: 800 MHz RAM: 512 MB SDRAM Flash Memory: 256 MB Status Indicators: Port status, port duplex mode, link/activity, speed - Expansion / Connectivity
Interfaces: 12 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP ¦ 12 x 1000Base-T RJ-45 PoE+ - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 244.6 Watt - Miscellaneous
MTBF: 96.6 years Compliant Standards: IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 Localization: English / United States - Dimensions & Weight
Width: 17.4 in Depth: 10 in Height: 1.7 in Weight: 7.65 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 15 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 15 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-JL813A#ABA |
| MFG Part# | JL813A#ABA |
| UPC | 190017523736 |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Remote Management Protocol | HTTP, HTTPS, ICMP, SCP, SNMP 1, SNMP 2c, TFTP |
| Encryption Algorithm | SSL |
