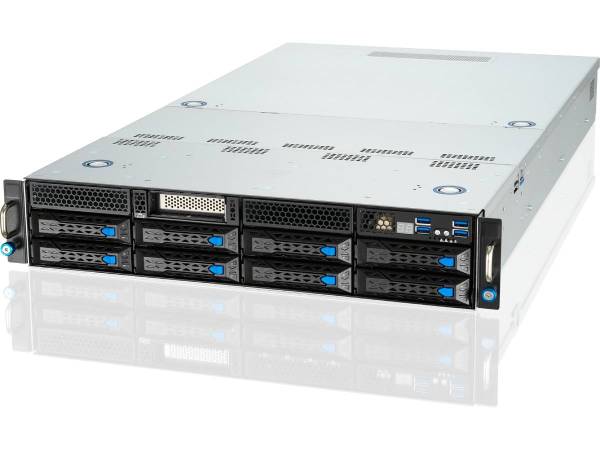

ASUS AMD 2U4GPU 2200WGP WITH AST2600 7367865
SKU
7367865
Category: Servers
- Primary Information
System Type: Server Model: ESC4000A-E11 Cabinet Form Factor: 2U Processor / Type: AMD EPYC 7002 Series; AMD EPYC 7003 Series Processor / Manufacturer: AMD RAM / Technology: DDR4 RAM / Memory Speed: 3200 MHz RAM Form Factor: DIMM RAM / Total Slots Qty: 8 Hard Drive / Bays Qty: 8 Networking Type: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Controller Interface Type: M.2; NVMe; PCI Express Storage Controller Type: PCI Express; NVMe; M.2 Data Link Protocol: USB; Gigabit Ethernet Power / Device Type: Power Supply Power / Provided (W): 280 Watt 80 PLUS Certification: 80 PLUS Platinum Interfaces & Connections: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Front I/O Ports: 1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports Rear I/O Ports: 2 x USB 3.2 Gen1 port 1 x VGA port 1 x Management port (RJ45) 2 x Gigabit LAN ports (RJ45) Expansion Bays Total (Free): 8 x 3.5" or 2.5" Hot-swap Storage Bays, 1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard) Expansion Slots Total (Free): Rear: - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL) Front: - SKU-1 (default) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) - SKU-2 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 1 x OCP3.0 slot (Gen4 x8 link) by switching cables - SKU-3 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables Width: 31.5 Inch Depth: 17.22 Inch Height: 3.5 Inch Weight: 34 Kg Features: A choice of PCIe Gen 4.0, OCP 3.0, NVMe and M.2 on the front panel offer flexibility, performance and scalability for changing business needs, Supports NVIDIA NVLink bridge to enable scaling of performance to meet the demands of visual computing workloads Min Operating Temperature: 10 Degree Celsius Max Operating Temperature: 35 Degree Celsius Humidity Range Operating: 20% ~ 90% ( Non condensing) - Processor
Processor / Manufacturer: AMD Processor / Type: AMD EPYC 7003 Series; AMD EPYC 7002 Series - RAM
RAM / Technology: DDR4 RAM / Memory Speed: 3200 MHz RAM Form Factor: DIMM RAM / Total Slots Qty: 8 - Storage
Hard Drive / Bays Qty: 8 - Networking
Networking Type: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Data Link Protocol: USB; Gigabit Ethernet - Power
Power / Device Type: Power Supply Power / Provided (W): 280 Watt 80 PLUS Certification: 80 PLUS Platinum - Expansion
Interfaces & Connections: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Front I/O Ports: 1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports Rear I/O Ports: 2 x USB 3.2 Gen1 port 1 x VGA port 1 x Management port (RJ45) 2 x Gigabit LAN ports (RJ45) Expansion Bays Total (Free): 8 x 3.5" or 2.5" Hot-swap Storage Bays, 1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard) Expansion Slots Total (Free): Rear: - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL) Front: - SKU-1 (default) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) - SKU-2 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 1 x OCP3.0 slot (Gen4 x8 link) by switching cables - SKU-3 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables - Dimensions&Miscellaneous
Width: 31.5 Inch Depth: 17.22 Inch Height: 3.5 Inch - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211501
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43211501 |
| Part# | ASU-ESC4000A-E11-22WGP |
| MFG Part# | ESC4000A-E11-22WGP |
| UPC | 197105015432 |
| RAM Form Factor | DIMM |
| Processor / Manufacturer | AMD |
| RAM / Memory Speed | 3200 MHz |
| RAM / Total Slots Qty | 8 |
| 80 PLUS Certification | 80 PLUS Platinum |
| Hard Drive / Bays Qty | 8 |
| Storage Controller Type | M.2, NVMe, PCI Express |
| RAM / Technology | DDR4 |
| Processor / Type | AMD EPYC 7002 Series, AMD EPYC 7003 Series |
| Cabinet Form Factor | 2U |
| Data Link Protocol | Gigabit Ethernet, USB |
| Power / Device Type | Power Supply |
| System Type | Server |
