ASUS NUC BAREBONE I3-1220P INTEL PLATFORM SUPPORT UP TO 64GB DDR4 W/O OS W11 H/PRO, W10 H/PRO/IOT ENT 7608114
SKU
7608114
CA$445.03

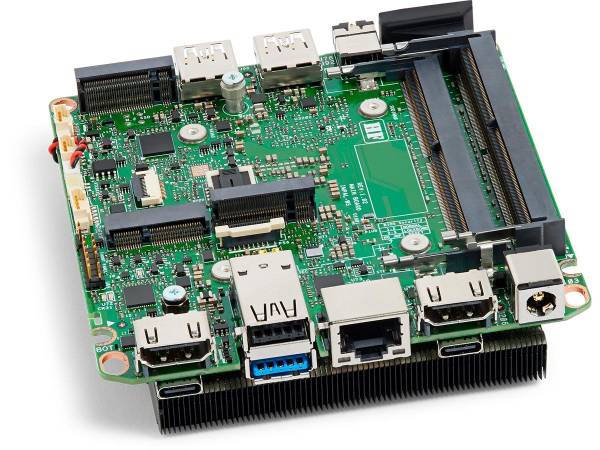

90AB2WSB-MB4100 NUC 12 PRO - NUC12WSBI3 - Intel Core i3-1220P - W/O RAM; supports 2 x SO-DIMM DDR4-3200MHz memory slots (up to 32GB 2) - W/O Storage; supports (2) internal storage drives: 1 x M.2 2280 NVMe PCIe G4x4 SSD 1 x M.2 2242 for SATA or PCIe G3x1 SSD - Integrated - Intel UHD Graphics - 1 x 2.5 GbE - 1 x M.2 2230 connector slot for Intel Wi-Fi 6E AX211 card (sold separately) - W/O OS; supports Windows 11 Home/Pro, Windows 10 Home/Pro/IOT Enterprise - 3-year warranty
Category: Desktops
- Primary Information
Model: NUC12WSBI3 Processor / Generation: Intel 12th Generation Processor / Type: Core i3 Processor / Manufacturer: Intel Multi-Core Technology: 10-Core Cache Memory Installed Size: 12 MB Max Turbo Frequency: 4.4 GHz Processor / Number: 1220P Processor / Installed Qty: 1 Cache Memory Installed Size: 12 MB RAM / Technology: DDR4 RAM / Total Slots Qty: 2 RAM / Total Installed Size: None GB RAM / Memory Speed: 3200 MHz RAM Form Factor: SODIMM RAM / Max Supported Size: 64 GB Hard Drive / Type: SSD Hard Drive Capacity / HDD: None GB Hard Drive / Spindle Speed: None RPM Hard Drive Capacity / SSD: None GB Hard Drive / Capacity (2nd): None GB Data Link Protocol: Gigabit Ethernet Graphics Controller: Intel UHD Max Monitors Supported: 4 Video Output Interface: Display Port; HDMI Operating System: None Interfaces & Connections: 2 x USB 2.0 Headers [internal] 1 x Front Panel Header [internal] 1 x Intel MEBX Reset Header [internal] Front I/O Ports: 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) Rear I/O Ports: 2 x Thunderbolt 4 (with DP1.4 | 5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps) 2 x HDMI 2.0b (up to 4K@60Hz) 1 x Intel 2.5G LAN (RJ45) 1 x DC-in Width: 4 Inch Depth: 4.1 Inch Height: 1.07 Inch Service & Support Type: 3-year warranty - Memory
Cache Memory Type: Smart Cache RAM / Total Slots Qty: 2 RAM / Technology: DDR4 RAM / Total Installed Size: None GB RAM / Memory Speed: 3200 MHz RAM Form Factor: SODIMM RAM / Max Supported Size: 64 GB - Processor
Processor / Generation: Intel 12th Generation Processor / Manufacturer: Intel Processor / Type: Core i3 Multi-Core Technology: 10-Core Max Turbo Frequency: 4.4 GHz Processor / Number: 1220P Processor / Installed Qty: 1 Cache Memory Type: Smart Cache Cache Memory Installed Size: 12 MB - Storage
Hard Drive / Type: SSD Hard Drive Capacity / HDD: None GB Hard Drive / Spindle Speed: None RPM Hard Drive Capacity / SSD: None GB Hard Drive / Capacity (2nd): None GB - Expansion
Interfaces & Connections: 2 x USB 2.0 Headers [internal] 1 x Front Panel Header [internal] 1 x Intel MEBX Reset Header [internal] Front I/O Ports: 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) Rear I/O Ports: 2 x Thunderbolt 4 (with DP1.4 | 5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps) 2 x HDMI 2.0b (up to 4K@60Hz) 1 x Intel 2.5G LAN (RJ45) 1 x DC-in - Networking
Data Link Protocol: Gigabit Ethernet - Video
Graphics Controller: Intel UHD Video Output Interface: Display Port; HDMI - Dimensions&Miscellaneous
Width: 4 Inch Depth: 4.1 Inch Height: 1.07 Inch - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43211508 |
| Part# | ASU-BNUC12WSBI30000 |
| MFG Part# | BNUC12WSBI30000 |
| UPC | 735858513746 |
| RAM Form Factor | SODIMM |
| RAM / Total Installed Size | None GB |
| Cache Memory Installed Size | 12 MB |
| Processor / Installed Qty | 1 |
| Multi-Core Technology | 10-Core |
| Processor / Number | 1220P |
| Processor / Manufacturer | Intel |
| RAM / Memory Speed | 3200 MHz |
| RAM / Total Slots Qty | 2 |
| Hard Drive Capacity / SSD | None GB |
| Hard Drive / Spindle Speed | None RPM |
| Hard Drive / Type | SSD |
| Video Output Interface | Display Port, HDMI |
| Hard Drive Capacity / HDD | None GB |
| RAM / Technology | DDR4 |
| Cache Memory Type | Smart Cache |
| Max Turbo Frequency | 4.4 GHz |
| Processor / Type | Core i3 |
| Data Link Protocol | Gigabit Ethernet |
| Graphics Controller | Intel UHD |
| Operating System | None |
| Max Monitors Supported | 4 |
| Processor / Generation | Intel 12th Generation |
