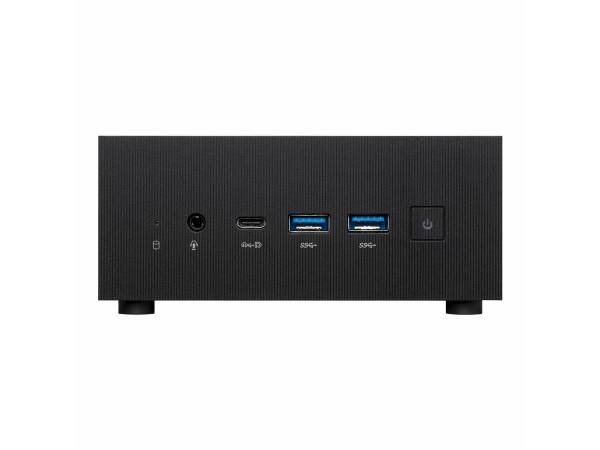

ASUS PN53-BB7000X1TDR-NL BAREBONE MINI PC AMD RYZEN 7 7735HS SUPPORT UP TO 64GB 2 X SO-DIMM DDR5 NON-LOGO 7322278
SKU
7322278
CA$800.00
ASUS ExpertCenter PN53 Mini PC Barebone with the newest AMD Ryzen 7 7735HS, Quad-4K displays, 7 x USB, up to 64GB DDR5 RAM, Triple Storage Design, WiFi 6E, Bluetooth, USB-C with VESA Mount
Category: Desktops
- Primary Information
Model: ASUS ExpertCenter PN53 Mini PC Barebone Cabinet Form Factor: Mini PC Processor / Type: AMD Ryzen 7 Processor / Manufacturer: AMD Multi-Core Technology: 8-Core Processor / Clock Speed: 3.2 GHz Max Turbo Frequency: 4.75 GHz Processor / Number: 7735HS Processor / Installed Qty: 1 Cache Memory Type: L3 Cache Cache Memory Installed Size: 16 MB RAM / Technology: DDR5 RAM / Total Installed Size: None GB RAM / Max Supported Size: 64 GB Hard Drive Capacity / HDD: None GB Hard Drive / Installed Qty: None Hard Drive / Interface Type: None Hard Drive / Spindle Speed: None RPM Hard Drive Capacity / SSD: None GB Optical Storage Type: None Memory Card Reader: None Hard Drive / Capacity (2nd): None GB Data Link Protocol: Gigabit Ethernet, Wi-Fi, Bluetooth 5.2 Graphics Controller: AMD Radeon Graphics Speakers: None Keyboard: Not Included Mouse: Not Included Operating System: None Power / Device Type: Power Adapter Power / Provided (W): 150 Watt Interfaces & Connections: 1 x Kensington Lock Slot Front I/O Ports: 1 x USB 4.0 Type-C (with DP1.4 | 5V/3A, 40Gbps) 2 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) Rear I/O Ports: 1 x USB 4.0 Type-C (with DP1.4/PD-in | 5V/3A, 40Gbps) 3 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 2 x HDMI 2.1 (up to 4K@60Hz) 1 x Configurable Port (DisplayPort 1.4) 1 x Realtek 2.5G LAN (RJ45) 1 x Padlock Ring 1 x DC-in Width: 4.72 Inch Depth: 5.31 Inch Height: 2.28 Inch Enclosure Color: Black Service & Support Type: 3 Year Warranty Features: 1. The non-logo ASUS ExpertCenter PN53 is powered by the newest Ryzen 7 7735HS CPU supporting the next gen memory DDR5 memory (with VESA Mount) 2. Up to Quad-4K displays support and 8K UHD 3. Support 7x USB ports, including 2 x Type C ports, and on-board dual HDMI ports 4. Multi-storage design, support up to up to 2x M.2 SSD and 1x HDD 5. Integrated Wi-Fi 6E and Bluetooth for easy cordless connections 6. Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication - Memory
Cache Memory Type: L3 Cache RAM / Technology: DDR5 RAM / Total Installed Size: None GB RAM / Max Supported Size: 64 GB - Processor
Processor / Type: AMD Ryzen 7 Processor / Manufacturer: AMD Multi-Core Technology: 8-Core Processor / Clock Speed: 3.2 GHz Max Turbo Frequency: 4.75 GHz Processor / Number: 7735HS Processor / Installed Qty: 1 Cache Memory Type: L3 Cache Cache Memory Installed Size: 16 MB - Storage
Hard Drive Capacity / HDD: None GB Hard Drive / Installed Qty: None Hard Drive / Interface Type: None Hard Drive / Spindle Speed: None RPM Hard Drive Capacity / SSD: None GB Optical Storage Type: None Hard Drive / Capacity (2nd): None GB - Expansion
Interfaces & Connections: 1 x Kensington Lock Slot Front I/O Ports: 1 x USB 4.0 Type-C (with DP1.4 | 5V/3A, 40Gbps) 2 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) Rear I/O Ports: 1 x USB 4.0 Type-C (with DP1.4/PD-in | 5V/3A, 40Gbps) 3 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 2 x HDMI 2.1 (up to 4K@60Hz) 1 x Configurable Port (DisplayPort 1.4) 1 x Realtek 2.5G LAN (RJ45) 1 x Padlock Ring 1 x DC-in - I/O
Keyboard: Not Included Mouse: Not Included - Networking
Data Link Protocol: Gigabit Ethernet, Wi-Fi, Bluetooth 5.2 - Power
Power / Device Type: Power Adapter Power / Provided (W): 150 Watt - Video
Graphics Controller: AMD Radeon Graphics - Dimensions&Miscellaneous
Enclosure Color: Black Width: 4.72 Inch Depth: 5.31 Inch Height: 2.28 Inch - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43211508 |
| Part# | ASU-PN53-BB7000X1TDR-NL |
| MFG Part# | PN53-BB7000X1TDR-NL |
| UPC | 197105291317 |
| RAM / Total Installed Size | None GB |
| Cache Memory Installed Size | 16 MB |
| Processor / Installed Qty | 1 |
| Multi-Core Technology | 8-Core |
| Processor / Number | 7735HS |
| Processor / Manufacturer | AMD |
| Hard Drive Capacity / SSD | None GB |
| Hard Drive / Spindle Speed | None RPM |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive Capacity / HDD | None GB |
| RAM / Technology | DDR5 |
| Cache Memory Type | L3 Cache |
| Max Turbo Frequency | 4.75 GHz |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Type | AMD Ryzen 7 |
| Cabinet Form Factor | Mini PC |
| Data Link Protocol | Bluetooth 5.2, Gigabit Ethernet, Wi-Fi |
| Graphics Controller | AMD Radeon Graphics |
| Power / Device Type | Power Adapter |
| Operating System | None |
| Memory Card Reader | None |
| Speakers | None |
