ASUS PN64-E1-BB7V000X1TD-NL BAREBONE MINI PC INTEL I7-13800H SUPPORT UP TO 64GB 2X SO-DIMM DDR5 (W/O OS W11HOME/PRO) NON-LOGO 7316647

SKU
7316647
main product photo
CA$1,130.00
90MR00W2-M00190 - Intel Core i7-13800H - W/O RAM; supports 2 x SO-DIMM DDR5-4800MHz memory slots (up to 32GB 2) - W/O Storage; supports (3) internal storage drives:2 x M.2 2280 PCIe G4x4 NVMe SSD (supports 256GB 2TB) 1 x 2.5-inch SATA 6Gb/s 7200rpm 7mm HDD (supports 1TB) - Integrated - Intel Iris Xe Graphics - 1 x Intel I226-LM (2.5 GbE) - Intel AX211 (Gig+), Wi-Fi 6E, 2x2 - BT 5.2 - 120W - W/O OS; supports Windows 11 Home/Pro - 3-year warranty





buy now pay later
Category: Desktops
  • Primary Information
    Model: ExpertCenter PN64
    Cabinet Form Factor: Mini
    Processor / Generation: Intel 13th Generation
    Processor / Type: Core i7
    Processor / Manufacturer: Intel
    Multi-Core Technology: 14-Core
    Cache Memory Installed Size: 24 MB
    Max Turbo Frequency: 5.2 GHz
    Processor / Number: 13800H
    Cache Memory Installed Size: 24 MB
    RAM / Technology: DDR5
    RAM / Total Slots Qty: 2
    RAM / Total Installed Size: None GB
    RAM / Memory Speed: 4800 MHz
    RAM Form Factor: SODIMM
    RAM / Max Supported Size: 64 GB
    Hard Drive Capacity / HDD: None GB
    Hard Drive Capacity / SSD: None GB
    Data Link Protocol: Wi-Fi, Bluetooth 5.2; Gigabit Ethernet
    Graphics Controller: Intel Iris Xe
    Speakers: No Speaker
    Operating System: None
    Power / Device Type: Power Adapter
    Power / Provided (W): 120 Watt
    Interfaces & Connections: 1 x Kensington Lock Slot

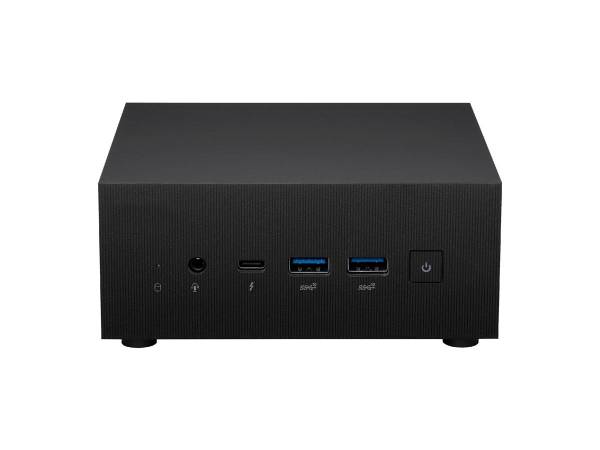

    Front I/O Ports: 1 x Thunderbolt 4 (5V/3A, 40Gbps) 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out)
    Rear I/O Ports: 1 x Thunderbolt 4 (with DP1.4/PD-in | 5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 2 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 2 x HDMI 2.1 (up to 4K@60Hz) 1 x Configurable Port (DisplayPort 1.4) 1 x Intel 2.5G LAN (RJ45) 1 x Padlock Ring 1 x DC-in
    Width: 4.72 Inch
    Depth: 2.28 Inch
    Height: 5.12 Inch
    Weight: 1.65 lbs.
    Service & Support Type: 3-year warranty
  • Memory
    Cache Memory Type: Smart Cache
    RAM / Total Slots Qty: 2
    RAM / Technology: DDR5
    RAM / Total Installed Size: None GB
    RAM / Memory Speed: 4800 MHz
    RAM Form Factor: SODIMM
    RAM / Max Supported Size: 64 GB
  • Processor
    Processor / Generation: Intel 13th Generation
    Processor / Type: Core i7
    Processor / Manufacturer: Intel
    Multi-Core Technology: 14-Core
    Max Turbo Frequency: 5.2 GHz
    Processor / Number: 13800H
    Cache Memory Type: Smart Cache
    Cache Memory Installed Size: 24 MB
  • Storage
    Hard Drive Capacity / HDD: None GB
    Hard Drive Capacity / SSD: None GB
  • Expansion
    Interfaces & Connections: 1 x Kensington Lock Slot
    Front I/O Ports: 1 x Thunderbolt 4 (5V/3A, 40Gbps) 2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out)
    Rear I/O Ports: 1 x Thunderbolt 4 (with DP1.4/PD-in | 5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 2 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps) 2 x HDMI 2.1 (up to 4K@60Hz) 1 x Configurable Port (DisplayPort 1.4) 1 x Intel 2.5G LAN (RJ45) 1 x Padlock Ring 1 x DC-in
  • Networking
    Data Link Protocol: Gigabit Ethernet; Wi-Fi, Bluetooth 5.2
  • Power
    Power / Device Type: Power Adapter
    Power / Provided (W): 120 Watt
  • Video
    Graphics Controller: Intel Iris Xe
  • Dimensions&Miscellaneous
    Width: 4.72 Inch
    Depth: 2.28 Inch
    Height: 5.12 Inch
    Weight: 1.65 lbs.
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43211508
More Information
BRANDS ASUS
UNSPSC 43211508
Part# ASU-PN64-E1-BB7V000X1TD-NL
MFG Part# PN64-E1-BB7V000X1TD-NL
UPC 197105318175
RAM Form Factor SODIMM
RAM / Total Installed Size None GB
Cache Memory Installed Size 24 MB
Multi-Core Technology 14-Core
Processor / Number 13800H
Processor / Manufacturer Intel
RAM / Memory Speed 4800 MHz
RAM / Total Slots Qty 2
Hard Drive Capacity / SSD None GB
Hard Drive Capacity / HDD None GB
RAM / Technology DDR5
Cache Memory Type Smart Cache
Max Turbo Frequency 5.2 GHz
Processor / Type Core i7
Cabinet Form Factor Mini
Data Link Protocol Bluetooth 5.2, Gigabit Ethernet, Wi-Fi
Graphics Controller Intel Iris Xe
Power / Device Type Power Adapter
Operating System None
Speakers No Speaker
Processor / Generation Intel 13th Generation
