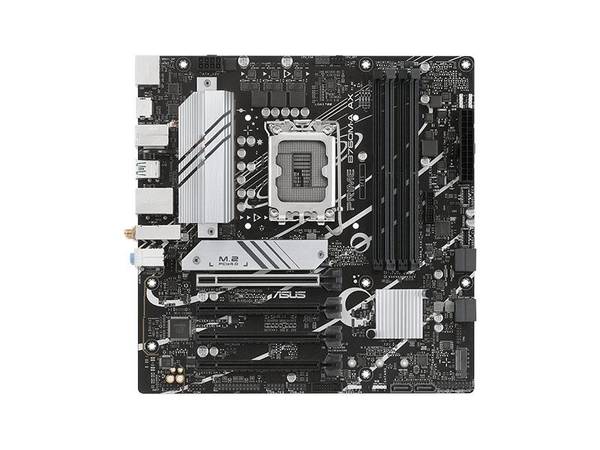

ASUS PRIME B760M-A AX INTEL SOCKET LGA 1700 FOR 12TH, 13TH AND 14TH GEN 128GB, DDR5 MATX 7205549
SKU
7205549
CA$196.50
ASUS PRIME B760M-A AX LGA 1700(Intel 14th, 13th, and 12th Gen) microATX motherboard (PCIe 4.0, 2xM.2 slots, DDR5, Realtek 2.5 Gb LAN,WiFi 6, DP,rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C), 3 Years
Category: Motherboards
- Dimensions&Miscellaneous
Model: PRIME B760M-A AX Width: 9.6 Inch Depth: 9.6 Inch - Primary Information
Mainboard Form Factor: mATX Mainboard / Chipset Type: Intel B760 Compatible Processors: 14th ,13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Networking Type: Ethernet,Wireless & Bluetooth Features: ASUS 5X PROTECTION III - DIGI+ VRM; - LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O. ASUS Q-Design: - Q-DIMM; - Q-LED Core; - Q-Slot. ASUS Thermal Solution: - M.2 heatsink; - VRM heatsink design. ASUS EZ DIY: - ProCool. Aura Sync: - Aura RGB header; - Addressable Gen 2 headers. - Processor
Processor / Socket Type: FCLGA1700 - Memory
RAM / Technology: DDR5 RAM / Max Supported Size: 128 GB - Expansion
Interfaces & Connections: Fan and Cooling related: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; Power related: 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; Storage related: 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB: 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 2 x USB 3.2 Gen 1 connector (supports USB Type-C); 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous: 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x RTC Battery header; - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43201513 |
| Part# | ASU-PRIME B760M-A AX |
| MFG Part# | PRIME B760M-A AX |
| UPC | 197105079007 |
| RAM / Technology | DDR5 |
| Processor / Socket Type | FCLGA1700 |
| Mainboard Form Factor | mATX |
