Mainboard Form Factor: | Micro ATX |
Mainboard / Chipset Type: | Intel W680 |
Compatible Processors: | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Pentium Gold and Celeron Processors |
Features: | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack button - BIOS FlashBack LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) Intel vPro UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTek. EzFlash Utility |
Processor / Socket Type: | Socket LGA1700 |
RAM / Technology: | DDR5 |
Data Integrity Check: | ECC; Non-ECC |
RAM / Max Supported Size: | 192 GB |
Expansion Slots Total (Free): | Intel 13th & 12th Gen Processors - 1 x PCIe 5.0 x16 slot Intel W680 Chipset - 1 x PCIe 4.0 x4 slot - 1 x PCIe 3.0 x1 slot |
Interfaces & Connections: | Back Panel I/O Ports -2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x Type-C) -4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) -1 x DisplayPort -1 x HDMI port -1 x VGA port from AST2600 -2 x Intel 2.5Gb Ethernet ports -1 x Realtek 1Gb Ethernet dedicated for AST2600 -3 x Audio jacks -1 x BIOS FlashbackTM button; Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function BMC Related 1 x BMC LED and switch 1 x VGA switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Q_PSU switch 1 x PSU SMBus header 1 x VPP_I2C header 1 x Micro SD card socket 1 x BMC_T_SENSOR header 1 x Location button header 1 x Location LED and header 1 x Message LED and header |
Width: | 9.6 Inch |
Depth: | 9.6 Inch |
Service & Support Type: | 3 Years |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43201513 |
BRANDS | ASUS |
---|---|
UNSPSC | 43201513 |

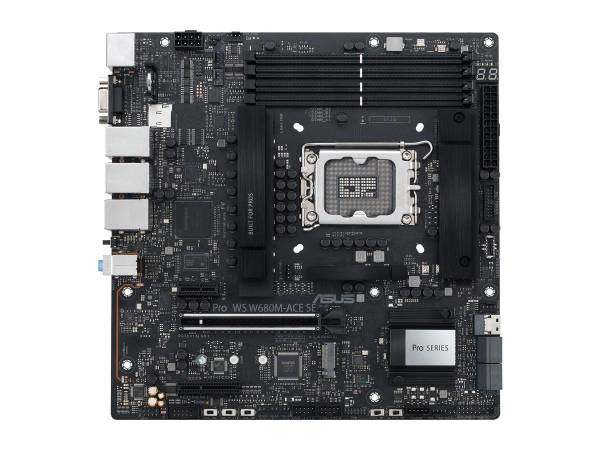

Part# | ASU-PRO WS W680M-ACE SE |
MFG Part# | PRO WS W680M-ACE SE |
UPC | 197105298194 |
Mainboard / Chipset Type | Intel W680 |
RAM / Technology | DDR5 |
Processor / Socket Type | Socket LGA1700 |
Data Integrity Check | ECC, Non-ECC |
Mainboard Form Factor | Micro ATX |
