ASUS TUF GAMING B760-PLUS WIFI INTEL SOCKET LGA1700 FOR 12th, 13th AND 14TH GEN 128GB, DDR5 ATX 7205550

SKU
7205550

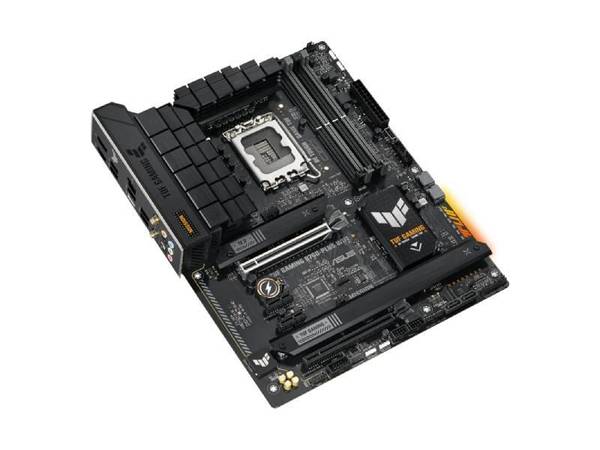

main product photo
CA$298.22
ASUS TUF GAMING B760-PLUS WIFI Intel B760 (14th, 13th, and 12thGen) LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) support, AEMP II, 3 Years





buy now pay later
Category: Motherboards
  • Dimensions&Miscellaneous
    Model: TUF GAMING B760-PLUS WIFI
    Width: 12 Inch
    Depth: 9.6 Inch
  • Primary Information
    Mainboard Form Factor: ATX
    Mainboard / Chipset Type: Intel B760
    Compatible Processors: 14th Gen Intel Core, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Networking Type: Ethernet,Wireless & Bluetooth
    Features: ASUS TUF PROTECTION: - DIGI+ VRM (- Digital power design with DrMOS); - ESD Guards; - TUF LANGuard; - Overvoltage Protection; - SafeSlot Core+; - Stainless-Steel Back I/O; ASUS Q-Design: - M.2 Q-Latch; - Q-DIMM; - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); - Q-Slot; ASUS Thermal Solution: - M.2 heatsink; - VRM heatsink design; ASUS EZ DIY: - CPU Socket lever protector; - ProCool; - Pre-mounted I/O shield; - SafeSlot Core+; - SafeDIMM; Aura Sync: - Aura RGB header; - Addressable Gen 2 headers;
  • Processor
    Processor / Socket Type: FCLGA1700
  • Memory
    RAM / Technology: DDR5
    RAM / Max Supported Size: 192 GB
  • Expansion
    Interfaces & Connections: Fan and Cooling related: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; Power related: 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; Storage related: 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; Miscellaneous: 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header;
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43201513
More Information
BRANDS ASUS
UNSPSC 43201513
Part# ASU-TUF GAMING B760-PLUS WIFI
MFG Part# TUF GAMING B760-PLUS WIFI
UPC 197105095113
RAM / Technology DDR5
Processor / Socket Type FCLGA1700
Mainboard Form Factor ATX
