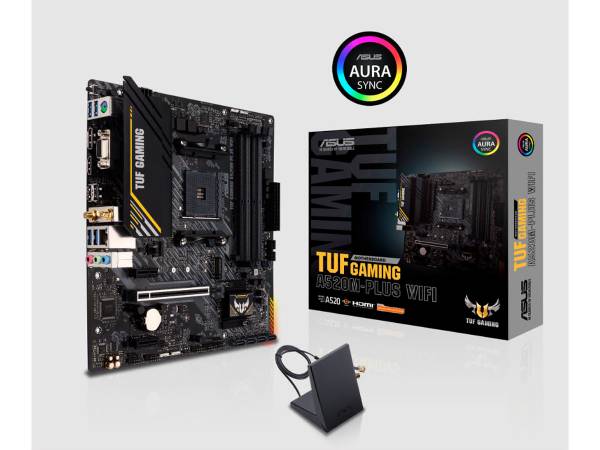

ASUSTUF GAMING A520M-PLUS WIFI AMD RYZEN 5000 SERIES/ 5000 G-SERIES/ 4000 G-SERI 6773765
SKU
6773765
CA$140.78
microATX - AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors - Socket AM4 - 4DDR4 (Dual channel) - Max 128GB - 7.1 Channel(HD) - ALC887/897 - O/S Support Compatibility Windows 10 64bit - 3 Years
Category: Motherboards
- Dimensions&Miscellaneous
Model: TUF GAMING A520M-PLUS WIFI Width: 24.4 Cm Depth: 24.4 Cm - Primary Information
Mainboard Form Factor: Micro ATX Mainboard / Chipset Type: AMD A520 Compatible Processors: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors - Memory
RAM / Max Supported Size: 128 GB - Expansion
Expansion Slots Total (Free): 2 x PCIe 3.0 x1 slots Interfaces & Connections: Back Panel I/O Ports : 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI port,1 x D-Sub, 1 x ASUS Wi-Fi Module, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x PS/2 Keyboard/Mouse combo port; Intrernal I/O Connectors : Fan and cooling related:1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related:1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related:1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports, USB:1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 3 USB 2.0 ports, Miscellaneous:2 x AURA Addressable Gen 2 header, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | ASUS |
|---|---|
| UNSPSC | 43201513 |
| Part# | ASU-TUF GAMING A520M-PLUS WIFI |
| MFG Part# | TUF GAMING A520M-PLUS WIFI |
| UPC | 195553154284 |
| Mainboard / Chipset Type | AMD A520 |
| Mainboard Form Factor | Micro ATX |
