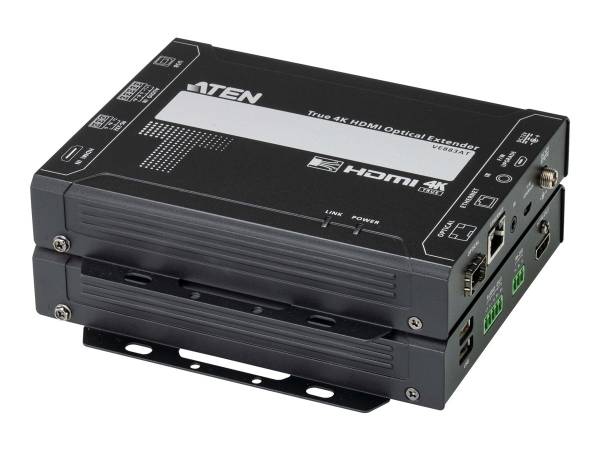

ATEN TRUE 4K HDMI OPTICAL EXTENDER (TRUE 4K 6.2 MILES/10KM - SFP DUPLEX SINGLE MODE) 7500016
SKU
7500016
CA$2,841.17
TRUE 4K HDMI OPTICAL EXTENDER (TRUE 4K 6.2 MILES/10KM - SFP DUPLEX SINGLE MODE)
Category: Repeaters & Transceivers
- Primary Information
Product Description: ATEN VE883A - transmitter and receiver - video/audio/infrared/serial/network extender - HDMI, RS-232 Device Type: Video/audio/infrared/serial/network extender Form Factor: Desktop / rack mountable Data Transfer Rate: 10.2 Gbps Data Link Protocol: HDMI, RS-232 Max Transfer Distance: 984 ft Power: DC 12 V - General
Device Type: Video/audio/infrared/serial/network extender Form Factor: Desktop / rack mountable - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, RS-232 Data Transfer Rate: 10.2 Gbps Max Resolution: 4096 x 2160 / 3840 x 2160 @ 60 Hz Max Video Bandwidth: 594 MHz Max Transfer Distance: 984 ft Status Indicators: Power, link, video Features: 4K resolution support, FarSmooth technology, bi-directional IR, hot-pluggable, 8KV/15KV ESD Protector, metal housing Compliant Standards: USB 2.0, HDCP 2.2, HDCP 2.3 - Expansion / Connectivity
Interfaces: 1 x HDMI input (transmitter) - 19 pin HDMI Type A female ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A female ¦ 1 x 10Gb Fibre Channel (transmitter) - SFP Module ¦ 1 x 10Gb Fibre Channel (receiver) - SFP Module ¦ 1 x audio line-in (transmitter) - 5 pin terminal block ¦ 1 x audio line-out (receiver) - 5 pin terminal block ¦ 1 x USB (firmware update) - micro-USB Type B female ¦ 2 x USB 2.0 (receiver) - Type A female ¦ 1 x USB 2.0 (transmitter) - Type B female ¦ 1 x RS-232 (receiver) - 3 pin terminal block ¦ 1 x RS-232 (transmitter) - 3 pin terminal block ¦ 1 x IR (receiver) - mini jack female ¦ 1 x IR (transmitter) - mini jack female ¦ 1 x network (transmitter) - RJ-45 female ¦ 1 x network (receiver) - RJ-45 female - Miscellaneous
Included Accessories: 2 x SFP modules, 2 x HDMI LockPro, IR sensor, IR receiver, 2 x 5-pole terminal block, 2 x 3-pole terminal block, 2 power adapters Cables Included: USB type A to USB type B cable - Power
Power Device: External power adapter Voltage Required: DC 12 V - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Receiver: 6.7 in x 5.8 in x 1.2 in / 23.3 oz ¦ Transmitter: 6.7 in x 5.8 in x 1.2 in / 23.6 oz - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | ATEN TECHNOLOGY |
|---|---|
| UNSPSC | 43222608 |
| Part# | ATE-VE883AK2 |
| MFG Part# | VE883AK2 |
| UPC | 672792015632 |
| Max Transfer Distance | 984 ft |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio/infrared/serial/network extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | Desktop / rack mountable |
| Data Link Protocol | HDMI, RS-232 |
