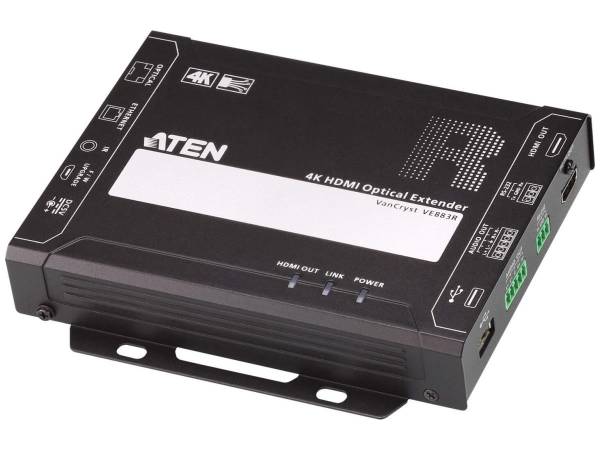

ATEN TRUE 4K HDMI OPTICAL RECEIVER (TRUE 4K @ 985FT / 300M SFP+ DUPLEX MULTI MODE) 7363045
SKU
7363045
CA$1,229.66
TRUE 4K HDMI OPTICAL RECEIVER (TRUE 4K @ 985FT / 300M SFP+ DUPLEX MULTI MODE)
Category: Combined AV Devices
- Primary Information
Product Description: ATEN VE883AR - video/audio/infrared/serial/network extender - HDMI, RS-232 Device Type: Video/audio/infrared/serial/network extender (receiver) Form Factor: Desktop / rack mountable Data Transfer Rate: 10.2 Gbps Data Link Protocol: HDMI, RS-232 Max Transfer Distance: 984 ft Power: DC 12 V Dimensions (WxDxH): 6.7 in x 5.8 in x 1.2 in Weight: 23.28 oz Manufacturer Warranty: 3-year warranty - General
Device Type: Video/audio/infrared/serial/network extender (receiver) Form Factor: Desktop / rack mountable - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI, RS-232 Data Transfer Rate: 10.2 Gbps Max Resolution: 4096 x 2160 / 3840 x 2160 @ 60 Hz Max Video Bandwidth: 594 MHz Max Transfer Distance: 984 ft Status Indicators: Power, link, video Features: 4K resolution support, 4:4:4 chroma subsampling support, 3D support, Deep Color support, metal housing, hot-pluggable, 8KV/15KV ESD Protector, bi-directional IR, FarSmooth technology Compliant Standards: USB 2.0, HDCP 2.2, HDCP 2.3 - Expansion / Connectivity
Interfaces: 2 x USB 2.0 - Type A female ¦ 1 x audio line-out - 5 pin terminal block ¦ 1 x RS-232 - 3 pin terminal block female ¦ 1 x HDMI output - 19 pin HDMI Type A female ¦ 1 x 10Gb Fibre Channel - SFP Module ¦ 1 x network - RJ-45 female ¦ 1 x IR - mini jack female ¦ 1 x USB (firmware update) - micro-USB Type B female - Miscellaneous
Included Accessories: Power adapter, 3-pole terminal block, 5-pole terminal block, IR sensor, IR receiver, HDMI LockPro, SFP module Compliant Standards: Plug and Play, FCC Part 15, WEEE, RCM, UKCA, KCC, RoHS - Power
Power Device: External power adapter Voltage Required: DC 12 V Power Consumption Operational: 6.5 Watt - Dimensions & Weight
Width: 6.7 in Depth: 5.8 in Height: 1.2 in Weight: 23.28 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45111800
| BRANDS | ATEN TECHNOLOGY |
|---|---|
| UNSPSC | 45111800 |
| Part# | ATE-VE883ARK1 |
| MFG Part# | VE883ARK1 |
| UPC | 672792015625 |
| Max Transfer Distance | 984 ft |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio/infrared/serial/network extender (receiver) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Form Factor | Desktop / rack mountable |
| Data Link Protocol | HDMI, RS-232 |
