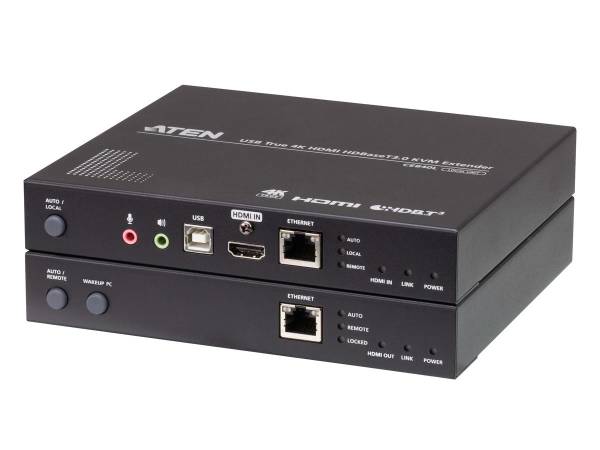

ATEN USB TRUE 4K HDMI HDBASET3.0 KVM EXTENDER 7442467
SKU
7442467
Category: KVM Switch & AV Splitters
- Primary Information
Product Description: ATEN CE840 - KVM extender - 10Mb LAN, 100Mb LAN, 1GbE, HDBaseT 3.0 Device Type: KVM extender - USB Form Factor: Rack-mountable Cabling Type: 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, HDBaseT 3.0 Max Transfer Distance: 328 ft - General
Device Type: KVM extender Form Factor: Rack-mountable - Networking
Connectivity Technology: Wired Cabling Type: 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, HDBaseT 3.0 Keyboard / Mouse Interface: USB Max Resolution: 4096 x 2160 @ 60 Hz Max Transfer Distance: 328 ft Status Indicators: Power, console, video, link Features: Firmware upgradable, 4K resolution support, 8KV ESD Protector, 15KV ESD Protector, metal housing, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, Pushbutton/Hotkey switching, HDR 4K60 4:4:4 compatible, HDR10+ support, 18 Gbps bandwidth, Deep Color support Compliant Standards: HDCP 2.2, HDCP 2.3 - Expansion / Connectivity
Interfaces: 2 x HDMI (local unit) - 19 pin HDMI Type A female ¦ 2 x USB keyboard / USB mouse (local unit) - Type A female ¦ 2 x microphone (local unit) - mini jack female ¦ 2 x speaker output (local unit) - mini jack female ¦ 2 x USB (local unit) - Type A female ¦ 1 x RS-232 (local unit) - DB-9 female ¦ 1 x HDBaseT output (local unit) - RJ-45 female ¦ 1 x network (local unit) - RJ-45 female ¦ 1 x USB (local unit) - Type B female ¦ 1 x HDMI (remote unit) - 19 pin HDMI Type A female ¦ 2 x USB keyboard / USB mouse (remote unit) - Type A female ¦ 2 x USB (remote unit) - Type A female ¦ 1 x microphone (remote unit) - mini jack female ¦ 1 x speakers (remote unit) - mini jack female ¦ 1 x network (remote unit) - RJ-45 female ¦ 1 x RS-232 (remote unit) - DB-9 male ¦ 1 x HDBaseT (remote unit) - RJ-45 female - Miscellaneous
Included Accessories: 2 x power cords, 8 foot pads Cables Included: 1 x HDMI cable ¦ 1 x microphone cable ¦ 1 x speaker cable ¦ 1 x USB-A to USB-B cable Rack Mounting Kit: Included Compliant Standards: CEC - Power
Power Device: External power adapter Installed Qty: 2 - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Local unit: 6.1 in x 7 in x 1.1 in / 28.9 oz ¦ Remote unit: 6.1 in x 7 in x 1.1 in / 28.6 oz - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | ATEN TECHNOLOGY |
|---|---|
| UNSPSC | 43211604 |
| Part# | ATE-CE840 |
| MFG Part# | CE840 |
| UPC | 672792015663 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Device Type | KVM extender |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE, HDBaseT 3.0 |
