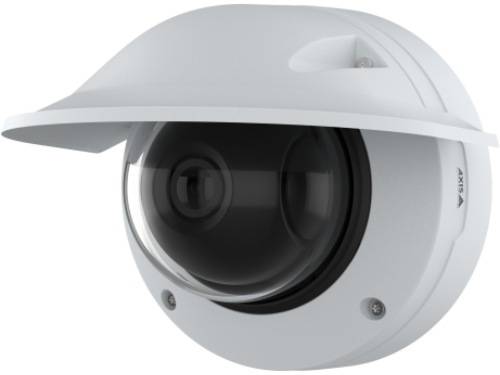

AXIS ADVANCED DOME CAMERA WITH REMOTE ADJUSTMENT BY PAN, TILT, ROLL AND ZOOM (PTRZ) 7245567
SKU
7245567
CA$1,935.10
Advanced dome camera with remote adjustment by Pan, Tilt, Roll and Zoom (PTRZ). Inlcudes a Deep Learning Processing Unit (DLPU) for advanced edge analytics. Support for Forensic WDR, Lightfinder 2.0. Robust, dust- and IK10 vandal-resistant outdoor-ready metal casing. Varifocal 4-9 mm P-Iris lens with remote pan, tilt, roll, zoom and focus. Electronic Image Stabilization. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. Sensors for intrusion and shock. MQTT support. AXIS Edge Vault with FIPS certified TPM for added cyber security. MicroSD memory card slot for local storage. Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy. Includes mounting bracket and weather shield.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS Q36 Series Q3626-VE - network surveillance camera - dome - TAA Compliant Device Type: Network surveillance camera - pan / tilt / zoom - dome - outdoor - vandal / weatherproof Audio: Yes: two-way audio capability Dimensions (WxDxH): 7.2 in x 7.2 in x 5.6 in Weight: 4.63 lbs Color: NCS S 1002-B, white Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2 x Max Resolution: 2688 x 1512 Frame Rate (max): 60 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 1/1.8" - 4 MP Minimum Illumination: 0.06 lux - color - F1.5 - 50 IRE ¦ 0.0136 lux - B&W - F1.5 - 50 IRE Focal Length Control: Vari-focal Focal Length: 4.3 mm - 8.6 mm Focus Adjustment: (min distance 19.7 in) Lens Iris: F/1.5-2.4 (P-Iris) Panning Range (degree): -190 to +190 Tilting Range (degree): -8 to +75 Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Voltage: PoE Class 4 Features: Forensic WDR, Lightfinder 2.0 technology, AXIS Object Analytics, Axis Edge Vault, electronic image stabilization, IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), 16:9 aspect ratio, 16:10 aspect ratio, 4:3 aspect ratio, Zipstream technology, Variable Bitrate (VBR), Multi-Bitrate (MBR), Adaptive Bitrate (ABR), low latency mode, video streaming indicator, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), contrast control, saturation control, brightness control, sharpness control, white balance, day/night shift level, tone mapping, exposure mode, exposure zone, defogging, barrel distortion correction, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, dynamic text overlay, image overlay, polygon privacy mask, target aperture, digital PTZ function, auto gain control, full duplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, secure boot, signed firmware TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -58 °F - 131 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Dome Connectivity Technology: Wired Width: 7.2 in Depth: 7.2 in Height: 5.6 in Weight: 4.63 lbs Localization: United States - Camera
Type: Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof Digital Video Format: H.264, H.265, MJPEG Max Digital Video Resolution: 2688 x 1512 Motion Detection: Yes Exposure Range: 1 sec - 1/91000 sec Minimum Illumination: 0.06 lux - color - F1.5 - 50 IRE ¦ 0.0136 lux - B&W - F1.5 - 50 IRE Digital Video Capture Resolution: 2688 x 1512, 160 x 90, 1280 x 800, 160 x 100, 2016 x 1512, 160 x 120 Frame Rate (max): 60 frames per second RAM: 2 GB Flash Memory: 8 GB Features: Forensic WDR, Lightfinder 2.0 technology, AXIS Object Analytics, Axis Edge Vault, electronic image stabilization, IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), 16:9 aspect ratio, 16:10 aspect ratio, 4:3 aspect ratio, Zipstream technology, Variable Bitrate (VBR), Multi-Bitrate (MBR), Adaptive Bitrate (ABR), low latency mode, video streaming indicator, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), contrast control, saturation control, brightness control, sharpness control, white balance, day/night shift level, tone mapping, exposure mode, exposure zone, defogging, barrel distortion correction, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, dynamic text overlay, image overlay, polygon privacy mask, target aperture, digital PTZ function, auto gain control, full duplex audio, half duplex audio, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, secure boot, signed firmware - Image Sensor
Type: 4 MP PS RGB CMOS 1/1.8" - Lens Construction
Type: Vari-focal Optical Zoom: 2 x Focal Length: 4.3 mm - 8.6 mm Lens Iris: F/1.5-2.4 (P-Iris) Min Focus Distance: 19.7 in Horizontal Field of View (degree): 52 - 103 Vertical Field of View (degree): 30 - 56 - Panning
Range (degree): -190 to +190 - Tilting
Range (degree): -8 to +75 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line in - 3.5 mm jack Supported Memory Cards: SD Memory Card, SDXC Memory Card, SDHC Memory Card Encryption Algorithm: FIPS 140-2 Level 2, EAP-TLS, TLS 1.2, TLS 1.3, PEAP, MSCHAPv2 - Miscellaneous
Included Accessories: Weathershield, conduit adapter, RESISTORX T20 screw bit, terminal block connectors, cable gasket, connector guard, owner authentication key TAA Compliant: Yes Compliant Standards: CSA, UL, cUL, UKCA, KC, VCCI Class A, RCM, EN 55032 Class A, EN 55035, EN 50121-4, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), ISO 21207 method B, IP6K9K, ISO 20653, NIST SP500-267, ETSI EN 303 645, IEEE 802.1x, IEEE 802.1ae, X.509, IEEE 802.1ar, IEEE 802.3at, PVC-free, BFR-free, CFR free, JEDEC, ECA, REACH 1907/2006/CE, RoHS 2011/65/EU, EN 63000:2018 Color: NCS S 1002-B, white - Power
Power Requirements: PoE Class 4 Power Device: 7 Watt - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -58 °F Max Operating Temperature: 131 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02616-004 |
| MFG Part# | 02616-004 |
| UPC | 7331021081390 |
| Max Resolution | 2688 x 1512 |
| Device Type | Network surveillance camera |
| Optical Zoom | 2 x |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | Vari-focal |
| Color | NCS S 1002-B, white |
| Focus Adjustment | (min distance 19.7 in) |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 1280 x 800, 160 x 100, 160 x 120, 160 x 90, 2016 x 1512, 2688 x 1512 |
| Focal Length | 4.3 mm - 8.6 mm |
| Encryption Algorithm | EAP-TLS, FIPS 140-2 Level 2, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3 |
