AXIS M3125-LVE BLACK 8175059
SKU
8175059
CA$551.82

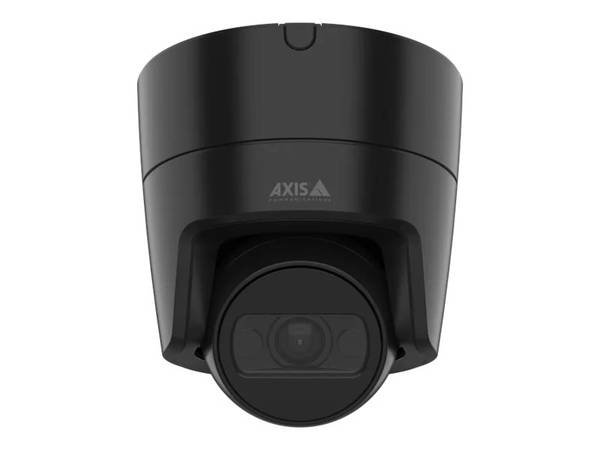

AXIS M3125-LVE is a compact, turret style outdoor-ready dome camera. IP66 and IK08 impact-resistant design with built-in IR illumination. Fixed lens, 110 horizontal field of view. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 2MP at up to 30 fps with WDR and Lightfinder. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced AI-based analytics. Axis Object Analytics, video motion detection and active tampering alarm. Audio and I/O with compatible Axis portcast accessories. MicroSD memory card slot for local video storage. AXIS Edge Vault with FIPS 140-3 level 3 for increased cyber security. Black color.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS M3125-LVE - network surveillance camera - turret - TAA Compliant Device Type: Network surveillance camera - pan / tilt / zoom - turret - outdoor - vandal / weatherproof Audio: Yes: two-way audio capability Camera Mount Type: Ceiling mount Dimensions (WxDxH): 4 in x 4 in x 3.7 in Weight: 13.76 oz Color: Black, NCS S 9000-N Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 1920 x 1080 Frame Rate (max): 60 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: PS RGB CMOS - 1/2.8" - 2 MP Minimum Illumination: 0.15 lux - color - F1.2 - 50 IRE ¦ 0.03 lux - B&W - F1.2 - 50 IRE ¦ 0 lux - IR Focal Length: 2.9 mm Lens Mounting: M12 mount Focus Adjustment: (min distance 19.7 in) Lens Iris: Fixed iris Panning Range (degree): -180 to +180 Tilting Range (degree): 0 to 60 Interfaces: Ethernet 10Base-T/100Base-TX Features: Zipstream technology, AI-powered, OptimizedIR, WDR technology, Axis Edge Vault, heater, day/night shift level, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, speaker pairing, level grid, text overlay, deep learning processing unit (DLPU), Ambarella CV25 SoC, plastic housing, perspective configuration, trigger capture, Line Crossing support, object enter area detection, cross line detection, Pixel Counter Support, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, exposure mode, exposure zone, compression, rotation mode, Corridor mode, image mirror, image overlay, dynamic text overlay, polygon privacy mask, digital PTZ function, 55 dB signal-to-noise ratio, 2.9µm pixel size TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 122 °F; 10 - 100% RH (non-condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability Audio Formats: AAC-LC, G.711, PCM, G.726, ADPCM, OPUS, LPCM Form Factor: Turret Camera Mount Type: Ceiling mount Connectivity Technology: Wired Width: 4 in Depth: 4 in Height: 3.7 in Weight: 13.76 oz Localization: Argentina, Australia, Brazil, China, Europe, Japan, United Kingdom, United States, Korea - Camera
Type: Color - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof Digital Video Format: MJPEG, H.264, H.265 Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Exposure Range: 2 sec - 1/25000 sec Minimum Illumination: 0.15 lux - color - F1.2 - 50 IRE ¦ 0.03 lux - B&W - F1.2 - 50 IRE ¦ 0 lux - IR Digital Video Capture Resolution: 1920 x 1080, 160 x 90 Frame Rate (max): 60 frames per second RAM: 1024 MB Flash Memory: 512 MB Features: Zipstream technology, AI-powered, OptimizedIR, WDR technology, Axis Edge Vault, heater, day/night shift level, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, speaker pairing, level grid, text overlay, deep learning processing unit (DLPU), Ambarella CV25 SoC, plastic housing, perspective configuration, trigger capture, Line Crossing support, object enter area detection, cross line detection, Pixel Counter Support, saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, exposure mode, exposure zone, compression, rotation mode, Corridor mode, image mirror, image overlay, dynamic text overlay, polygon privacy mask, digital PTZ function, 55 dB signal-to-noise ratio, 2.9µm pixel size - Image Sensor
Type: 2 MP PS RGB CMOS 1/2.8" - Lens Construction
Type: M12 mount Focal Length: 2.9 mm Lens Iris: Fixed iris Min Focus Distance: 19.7 in Horizontal Field of View (degree): 110 Vertical Field of View (degree): 60 - Panning
Range (degree): -180 to +180 - Tilting
Range (degree): 0 to 60 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: SFTP, FTP, HTTP, HTTPS, TCP, MQTT, IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP/2, TLS, QOS, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, Syslog, Zeroconf - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: SD Memory Card, SDXC Memory Card, SDHC Memory Card Encryption Algorithm: FIPS 140-3 Level 3, EAP-TLS, PEAP, MSCHAPv2 - Miscellaneous
Included Accessories: Connector guard, cable gaskets, owner authentication key TAA Compliant: Yes Compliant Standards: IEEE 802.3af, IEEE 802.3at, PVC-free, RoHS 2011/65/EU, RoHS, EN/IEC 63000:2018, REACH 2006/1907, NEMA Type 4X, IEEE 802.1x, IEEE 802.1ae, ETSI EN 303 645, NIST SP500-267, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, IEC/EN 62471, IEC/EN/UL 62368-1 Third Edition, IS 13252, UL 60950-22, CSA, UL/cUL, BIS, KC, EAC, VCCI, RCM, BSMI, EN 55035 Class A, EN 61000-6-1, EN 61000-6-2, EN55024, AS/NZ CISPR 32 Class A, FCC Part 15 B Class A, ICES Class A, KCC KN32 Class A, KCC KN35, KS C 9832 Class A, KS C 9835, NMB-3 Class A Color: Black, NCS S 9000-N - Power
Power Device: 3.7 Watt - Software / System Requirements
Software Included: AXIS Live Privacy Shield, AXIS Object Analytics, AXIS Video Motion Detection, AXIS Scene Metadata - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 100% RH (non-condensing) - Special Feature
COO: CAMBODIA - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02917-001 |
| MFG Part# | 02917-001 |
| UPC | 7331021086319 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | M12 mount |
| Color | Black, NCS S 9000-N |
| Focus Adjustment | (min distance 19.7 in) |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 160 x 90, 1920 x 1080 |
| Focal Length | 2.9 mm |
| Encryption Algorithm | EAP-TLS, FIPS 140-3 Level 3, MSCHAPv2, PEAP |
