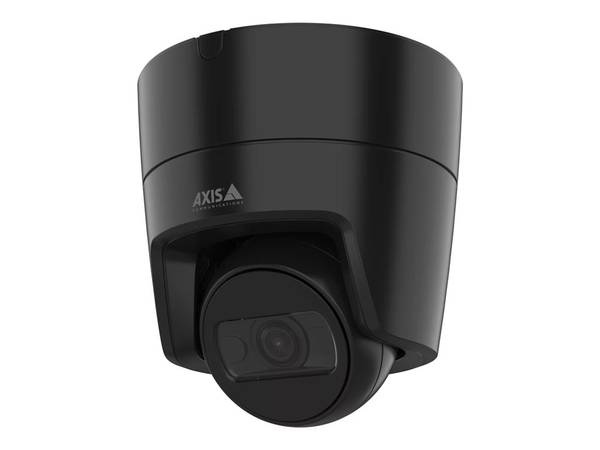

AXIS M3128-LVE BLACK 8175063
SKU
8175063
CA$861.67
AXIS M3128-LVE is a compact, turret style outdoor-ready dome camera. IP66 and IK08 impact-resistant design with built-in IR illumination. Fixed lens, 110 horizontal field of view. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 8MP at up to 15 fps with WDR. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced AI-based analytics. Axis Object Analytics, video motion detection and active tampering alarm. Audio and I/O with compatible Axis portcast accessories. MicroSD memory card slot for local video storage. AXIS Edge Vault with FIPS 140-3 level 3 for increased cyber security. Black color.
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS M3128-LVE - network surveillance camera - turret - TAA Compliant Device Type: Network surveillance camera - pan / tilt / zoom - turret - outdoor, indoor - vandal / weatherproof Audio: Yes: two-way audio capability, speaker pairing Dimensions (WxDxH): 4 in x 4 in x 3.7 in Weight: 13.76 oz Color: White Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 5.8 x Max Resolution: 3840 x 2160 Frame Rate (max): 15 frames per second Motion Detection: Yes Video Modes: 4K Optical Sensor Type: PS RGB CMOS - 1/2.8" - 8 MP Minimum Illumination: 0.22 lux - color - F1.2 - 50 IRE ¦ 0.05 lux - B&W - F1.2 - 50 IRE Focal Length: 0.5 m - 2.9 mm Lens Mounting: M12 mount Lens Iris: F/2.0 - fixed iris Panning Range (degree): -180 to +180 Tilting Range (degree): 0 to 60 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: PoE Class 3 Features: Wide Dynamic Range (WDR), OptimizedIR, AI-powered, AI Analytics, Axis Edge Vault, 110° field of view, deep learning processing unit (DLPU), Zipstream technology, secure boot, built-in IR illuminator, repaintable, PVC free, IR Corrected lens, -95° / +95° rotation, Ambarella CV25 SoC, Adaptive Bitrate (ABR), Variable Bitrate (VBR) TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 122 °F - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability, speaker pairing Audio Formats: G.711, AAC-LC, G.726, LPCM Form Factor: Turret Connectivity Technology: Wired Width: 4 in Depth: 4 in Height: 3.7 in Weight: 13.76 oz Localization: Argentina, Australia, Brazil, China, Europe, Japan, South Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - pan / tilt / zoom - outdoor, indoor - vandal / weatherproof Digital Video Format: H.265, H.264, MJPEG Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Video Modes: 4K Exposure Range: 1/71500 sec - 2 sec Minimum Illumination: 0.22 lux - color - F1.2 - 50 IRE ¦ 0.05 lux - B&W - F1.2 - 50 IRE Infrared LEDs: Yes Infrared Distance: 66 ft Digital Video Capture Resolution: 3840 x 2160, 160 x 90 Frame Rate (max): 15 frames per second RAM: 2048 MB Flash Memory: 512 MB Features: Wide Dynamic Range (WDR), OptimizedIR, AI-powered, AI Analytics, Axis Edge Vault, 110° field of view, deep learning processing unit (DLPU), Zipstream technology, secure boot, built-in IR illuminator, repaintable, PVC free, IR Corrected lens, -95° / +95° rotation, Ambarella CV25 SoC, Adaptive Bitrate (ABR), Variable Bitrate (VBR) - Image Sensor
Type: 8 MP PS RGB CMOS 1/2.8" Total Pixels: 3840 x 2160 - Lens Construction
Type: M12 mount Optical Zoom: 5.8 x Focal Length: 0.5 m - 2.9 mm Lens Iris: F/2.0 fixed iris Horizontal Field of View (degree): 110 Vertical Field of View (degree): 60 - Panning
Range (degree): -180 to +180 - Tilting
Range (degree): 0 to 60 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: IPv4, IPv6, ICMPv4, ICMPv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMTP, MDNS, UPnP, SNMP 1, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4, ARP, SSH, LLDP, CDP, MQTT, SNMP 2c, SNMP 3, DHCPv6, IGMPv2, IGMPv3 - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card - Miscellaneous
Included Accessories: Connector guard, cable gaskets, owner authentication key TAA Compliant: Yes Compliant Standards: FIPS 140-3 Level 3, IP66, IK08, ETSI EN 303 645, NIST SP500-267, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, EN 60529, NEMA 250 Type 4X, IEC/EN 62262, FCC Part 15 B Class A, IEC/EN 62471, IEC/EN/UL 62368-1, IS 13252, UL 60950-22, ICES Class A, KCC KN32 Class A, KN35, KS C 9832 Class A, KS C 9835, CSA, UL/cUL, BIS, KC, EAC, VCCI, RCM, BSMI, ROHS Directive 2011/65/EU, EN/IEC 63000:2018, IEEE 802.1x, IEEE 802.1ae, IEEE 802.3af, IEEE 802.3at Color: White - Power
Power Requirements: PoE Class 3 Power Device: 10.5 Watt - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 122 °F - Special Feature
COO: CAMBODIA - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02921-001 |
| MFG Part# | 02921-001 |
| UPC | 7331021086432 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Optical Zoom | 5.8 x |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | M12 mount |
| Color | White |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 160 x 90, 3840 x 2160 |
| Focal Length | 0.5 m - 2.9 mm |
