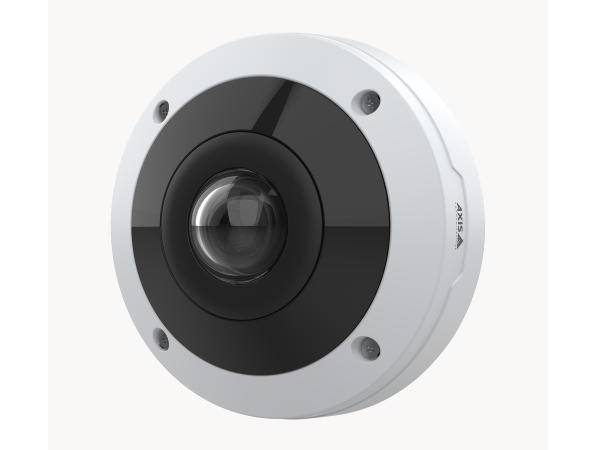

AXIS M4318-PLR 7332033
SKU
7332033
CA$1,300.04
AXIS M4318-PLR IS A DISCREET, IK10 AND IP66 READY DOME DESIGNED WITH 12 MP RESOLUTION AND A STEREOGRAPHIC LENS. IT CAN DELIVER MULTIPLE 360 OR 180 PANORAMIC VIEWS AT UP TO 30 FPS WITH NO BLIND SPOTS. THANKS TO SHARPDOME 360, THIS PANORAMIC CAMERA DELIVERS
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS M43 Series M4318-PLR - network panoramic camera - fisheye - TAA Compliant Device Type: Network panoramic camera - fixed - fisheye - outdoor - vandal / weatherproof Audio: Yes: two-way audio capability Dimensions (WxDxH): 5.9 in x 5.9 in x 2.8 in Weight: 30.33 oz Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2992 x 2992 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 1/2.3" - 12 MP Minimum Illumination: 0.19 lux - color - F2.2 - 50 IRE ¦ 0.04 lux - B&W - F2.2 - 50 IRE Focal Length Control: Fixed focal Focal Length: 1.2 mm Focus Adjustment: Fixed focus Lens Iris: F/2.2 - fixed iris Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Features: Sharpdome technology, 360° panoramic capture, 180° panoramic view mode, IR Corrected lens, infrared cut filter, digital roll, deep learning processing unit (DLPU), Wide Dynamic Range (WDR), Zipstream technology, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Adaptive Bitrate (ABR), brightness control, compression, contrast control, day/night threshold, digital PTZ function, dynamic text overlay, exposure mode, exposure zone, Forensic WDR, image mirror, image overlay, Lightfinder technology, Multi-Bitrate (MBR), OptimizedIR, polygon privacy mask, saturation control, sharpness control, tone mapping, Variable Bitrate (VBR), white balance, AXIS Object Analytics, human detection, Line Crossing Detection, object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Vehicle Detection, Face Recognition, vehicle color recognition, active tampering alarm, NAS-Ready, aluminum housing, polycarbonate housing TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 122 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network panoramic camera Audio Support: Yes: two-way audio capability Form Factor: Fisheye Connectivity Technology: Wired Width: 5.9 in Depth: 5.9 in Height: 2.8 in Weight: 30.33 oz - Camera
Type: Color - Day&Night - fixed - outdoor - vandal / weatherproof Digital Video Format: MJPEG, H.264, H.265 Max Digital Video Resolution: 2992 x 2992 Motion Detection: Yes Exposure Range: 0.5 sec - 1/8100 sec Minimum Illumination: 0.19 lux - color - F2.2 - 50 IRE ¦ 0.04 lux - B&W - F2.2 - 50 IRE Infrared LEDs: Yes Infrared Distance: 49 ft Digital Video Capture Resolution: 3840 x 2160, 2992 x 2992, 160 x 160, 192 x 72, 3584 x 2688, 512 x 288, 384 x 288, 2048 x 1536, 256 x 144, 3200 x 1200, 2880 x 2880, 2560 x 1920 Frame Rate (max): 30 frames per second RAM: 2 GB Flash Memory: 8 GB Features: Sharpdome technology, 360° panoramic capture, 180° panoramic view mode, IR Corrected lens, infrared cut filter, digital roll, deep learning processing unit (DLPU), Wide Dynamic Range (WDR), Zipstream technology, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Adaptive Bitrate (ABR), brightness control, compression, contrast control, day/night threshold, digital PTZ function, dynamic text overlay, exposure mode, exposure zone, Forensic WDR, image mirror, image overlay, Lightfinder technology, Multi-Bitrate (MBR), OptimizedIR, polygon privacy mask, saturation control, sharpness control, tone mapping, Variable Bitrate (VBR), white balance, AXIS Object Analytics, human detection, Line Crossing Detection, object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Vehicle Detection, Face Recognition, vehicle color recognition, active tampering alarm, NAS-Ready, aluminum housing, polycarbonate housing - Image Sensor
Type: 12 MP PS RGB CMOS 1/2.3" - Lens Construction
Type: Fixed focal Focal Length: 1.2 mm Lens Iris: F/2.2 fixed iris Focus Adjustment: Fixed focus Horizontal Field of View (degree): 182 Vertical Field of View (degree): 182 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: EAP-TLS, PEAP, MSCHAPv2, TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Terminal block connector, connector guard, cable gaskets, cable hole lid, owner authentication key TAA Compliant: Yes Compliant Standards: IEEE 802.1x, IEEE 802.1ar, CSA, UL, cUL, BIS, UKCA, KC, AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, ECE R10 Rev.06, EN 50121-4, EN 50155, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 61547, ETSI EN 303 645, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC TR 60721-4-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 61373 Category 1 Class B, IEC/EN 62262 IK10, IEC/EN 62471, IEC/EN/UL 62368-1, IS 13252, ISO 21207 method B, ISO 4892-2, KS C 9832 Class A, KS C 9835, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NIST SP500-267, RCM, UN ECE R118, VCCI Class A, IEEE 802.3af, IEEE 802.3at, BFR-free, CFR free, PVC-free, JEDEC, ECA, EN 63000:2018, REACH 1907/2006/CE, RoHS 2011/65/EU Color: White, NCS S 1002-B - Power
Power Requirements: DC 12 V / PoE Power Device: 6.4 Watt - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02834-001 |
| MFG Part# | 02834-001 |
| UPC | 7331021085060 |
| Max Resolution | 2992 x 2992 |
| Device Type | Network panoramic camera |
| Connectivity Technology | Wired |
| Form Factor | Fisheye |
| Type | Fixed focal |
| Color | NCS S 1002-B, White |
| Focus Adjustment | Fixed focus |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 160 x 160, 192 x 72, 2048 x 1536, 256 x 144, 2560 x 1920, 2880 x 2880, 2992 x 2992, 3200 x 1200, 3584 x 2688, 384 x 288, 3840 x 2160, 512 x 288 |
| Focal Length | 1.2 mm |
| Encryption Algorithm | EAP-TLS, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3 |
