AXIS P1385-BE 7976021
SKU
7976021
CA$1,300.04

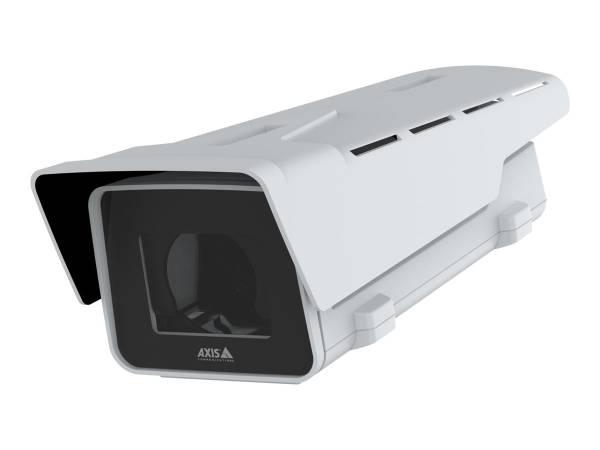

AXIS P1385-BE 1/2.8in image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 2MP / 1080p resolution, day/night box camera with Deep Learning Processing Unit (DLPU). Forensic WDR and Lightfinder 2.0. Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 2 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3at Type2 Class 4 or 10-28 V DC power with redundancy. B
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P13 Series P1385-BE - network surveillance camera (no lens) - box - TAA Compliant Device Type: Network surveillance camera (no lens) - fixed - box - outdoor Audio: Yes: two-way audio capability, microphone pairing, speaker pairing Dimensions (WxDxH): 6.3 in x 15.9 in x 5.6 in Weight: 4.85 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 1920 x 1080 Frame Rate (max): 60 frames per second Motion Detection: Yes Video Modes: 1080p Optical Sensor Type: PS RGB CMOS - 1/2.8" - 2 MP Lens Mounting: CS-mount Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Control Interface: RS-485, RS-422 Voltage: DC 10 - 28 V / PoE Plus Class 4 Features: Infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, digital PTZ function, control queue, on-screen directional indicator, guard tour, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, auto gain control, electronic image stabilization, day/night shift level, Defog, Audio Detection, Remote Back Focus, Axis device ID, secure keystore, brute force delay protection, signed video, digest authentication, Axis Edge Vault, secure boot, IP address filtering, i-CS lens, scene metadata TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 140 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network surveillance camera (no lens) Audio Support: Yes: two-way audio capability, microphone pairing, speaker pairing Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Box Connectivity Technology: Wired Width: 6.3 in Depth: 15.9 in Height: 5.6 in Weight: 4.85 lbs Localization: Argentina, Australia, Brazil, China, Europe, India, Japan, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - outdoor Digital Video Format: H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 1920 x 1080 Motion Detection: Yes Video Modes: 1080p Exposure Range: 2 sec - 1/37000 sec Video Capture: 1920 x 1080, WDR off @ 50/60 fps ¦ 1920 x 1080, WDR on @ 25/30 fps RAM: 1 GB Flash Memory: 8 GB Features: Infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, digital PTZ function, control queue, on-screen directional indicator, guard tour, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, auto gain control, electronic image stabilization, day/night shift level, Defog, Audio Detection, Remote Back Focus, Axis device ID, secure keystore, brute force delay protection, signed video, digest authentication, Axis Edge Vault, secure boot, IP address filtering, i-CS lens, scene metadata - Image Sensor
Type: 2 MP PS RGB CMOS 1/2.8" - Lens Construction
Type: CS-mount - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf Control Interface: RS-485, RS-422 Alarm Inputs Qty: 2 Alarm Outputs Qty: 2 - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Terminal block connectors, owner authentication key TAA Compliant: Yes Compliant Standards: UL, cUL, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IP66, IP67, IEC/EN 62262 IK10, ISO 4892-2, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, IPv6, USGv6, ETSI EN 303 645, FIPS 140, PVC-free, BFR-free, CFR free, EN 63000:2018, REACH 2006/1907, IEEE 802.1x, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at, RoHS 2011/65/EU Color: White, NCS S 1002-B - Power
Power Requirements: DC 10 - 28 V / PoE Plus Class 4 - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Live Privacy Shield, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02900-001 |
| MFG Part# | 02900-001 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera (no lens) |
| Connectivity Technology | Wired |
| Form Factor | Box |
| Type | CS-mount |
| Color | NCS S 1002-B, White |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
