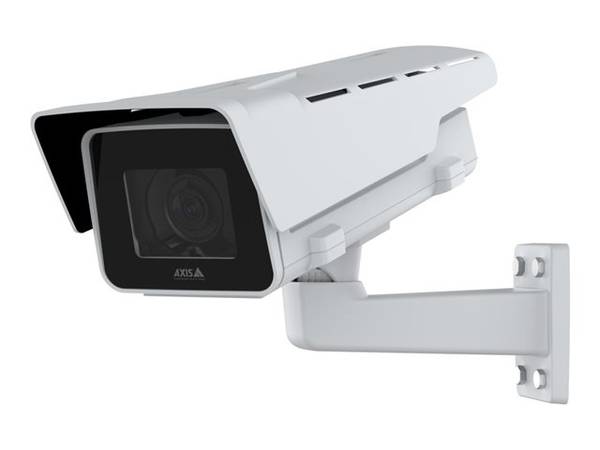

AXIS P1385-E 7976020
SKU
7976020
CA$1,450.72
1/2.8in image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 2MP / 1080p resolution, day/night box camera with Deep Learning Processing Unit (DLPU). Forensic WDR and Lightfinder 2.0. Varifocal IR corrected 2.8-13 mm F1.4 P-iris lens and remote focus. Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 2 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3a
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P1385-E - network surveillance camera - bullet - TAA Compliant Device Type: Network surveillance camera - fixed - bullet - outdoor - weatherproof / heatproof / impact-resistant Audio: Yes: two-way audio capability Dimensions (WxDxH): 5.7 in x 15.9 in x 5.6 in Weight: 5.03 lbs Color: NCS S 1002-B, white Camera: Color - Day&Night Optical Zoom: 4.6 x Max Resolution: 1920 x 1080 Frame Rate (max): 60 frames per second Video Modes: 1080p Optical Sensor Type: PS RGB CMOS - 1/2.8" Minimum Illumination: 0.05 lux - color, Forensic WDR and Lightfinder 2.0 - F1.4 - 50 IRE ¦ 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.4 - 50 IRE ¦ 0.02 lux - color, Forensic WDR and Lightfinder 2.0 - F0.9 - 50 IRE ¦ 0.005 lux - B&W, Forensic WDR and Lightfinder 2.0 - F0.9 - 50 IRE Focal Length: 2.8 mm - 13 mm Lens Mounting: C/CS-mount Lens Iris: F/1.4 (P-Iris) Voltage: DC 10 - 28 V, PoE Class 4 Features: Removable IR filter, deep learning processing unit (DLPU), Variable Bitrate (VBR), Adaptive Bitrate (ABR), low latency mode, video streaming indicator, Forensic WDR, 3D Noise Reduction Technology, 2D Digital Noise Reduction Technology, contrast control, saturation control, brightness control, sharpness control, white balance, exposure mode, Automatic Gain Control (AGC), day/night threshold, digital PTZ function, exposure zone, Lightfinder 2.0 technology, polygon privacy mask, Privacy Mask Function, speaker pairing, target aperture, tone mapping, Zipstream technology, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, defogging, Audio Detection, Auto Focus, day/night shift level, electronic image stabilization, heater, microphone pairing, Wide Dynamic Range (WDR) TAA Compliant: Yes Manufacturer Warranty: 5-year warranty - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability Audio Formats: LPCM, AAC-LC, G.711, G.726, OPUS Form Factor: Bullet Width: 5.7 in Depth: 15.9 in Height: 5.6 in Weight: 5.03 lbs Localization: Argentina, Australia, Brazil, China, Europe, India, Japan, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - outdoor - weatherproof / heatproof / impact-resistant Digital Video Format: H.264, H.265, MJPEG Max Digital Video Resolution: 1920 x 1080 Video Modes: 1080p Minimum Illumination: 0.05 lux - color, Forensic WDR and Lightfinder 2.0 - F1.4 - 50 IRE ¦ 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.4 - 50 IRE ¦ 0.02 lux - color, Forensic WDR and Lightfinder 2.0 - F0.9 - 50 IRE ¦ 0.005 lux - B&W, Forensic WDR and Lightfinder 2.0 - F0.9 - 50 IRE Infrared LEDs: Yes Digital Video Capture Resolution: 1920 x 1080, 160 x90 Frame Rate (max): 60 frames per second Supported Image Formats: JPEG (Motion photos) Features: Removable IR filter, deep learning processing unit (DLPU), Variable Bitrate (VBR), Adaptive Bitrate (ABR), low latency mode, video streaming indicator, Forensic WDR, 3D Noise Reduction Technology, 2D Digital Noise Reduction Technology, contrast control, saturation control, brightness control, sharpness control, white balance, exposure mode, Automatic Gain Control (AGC), day/night threshold, digital PTZ function, exposure zone, Lightfinder 2.0 technology, polygon privacy mask, Privacy Mask Function, speaker pairing, target aperture, tone mapping, Zipstream technology, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, defogging, Audio Detection, Auto Focus, day/night shift level, electronic image stabilization, heater, microphone pairing, Wide Dynamic Range (WDR) - Image Sensor
Type: PS RGB CMOS 1/2.8" - Lens Construction
Type: C/CS-mount Optical Zoom: 4.6 x Focal Length: 2.8 mm - 13 mm Lens Iris: F/1.4 (P-Iris) Horizontal Field of View (degree): 26 - 121 Vertical Field of View (degree): 15 - 64 - Interfaces
Network Protocols: IPv4, IPv6, USGv6, ICMP, HTTPS, HTTP, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, RTCP, DHCP, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP, ONVIF - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ LAN/power - terminal block ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 Supported Memory Cards: SD Memory Card, SDXC Memory Card, SDHC Memory Card - Miscellaneous
Included Accessories: Terminal block connectors, wall mount kit, owner authentication key TAA Compliant: Yes Compliant Standards: UL/cUL, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IP66, IP67, IEC/EN 62262, IK10, ISO 4892-2, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.1x, IEEE 802.1ar, NEMA Type 4X, REACH, EU RoHS Color: NCS S 1002-B, white - Power
Power Requirements: PoE Class 4 Power Device: DC 10 - 28 V 3.58 Watt - Software / System Requirements
System Requirements Details: ARTPEC-8 RAM 1024 GB - HD 8192 MB - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02734-001 |
| MFG Part# | 02734-001 |
| Max Resolution | 1920 x 1080 |
| Device Type | Network surveillance camera |
| Optical Zoom | 4.6 x |
| Form Factor | Bullet |
| Type | C/CS-mount |
| Color | NCS S 1002-B, white |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 160 x90, 1920 x 1080 |
| Focal Length | 2.8 mm - 13 mm |
