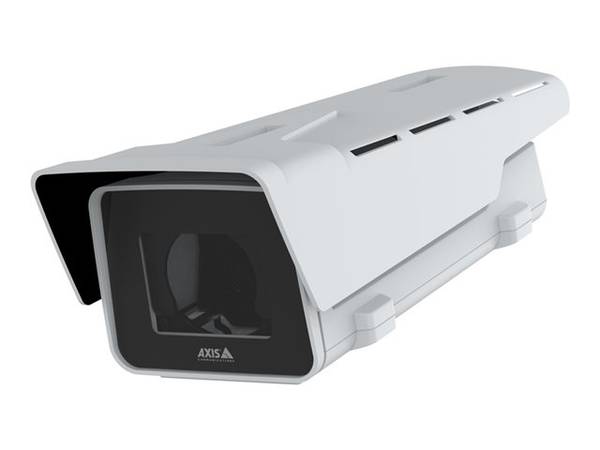

AXIS P1387-BE 7976023
SKU
7976023
CA$1,341.13
1/2.7in image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 5 MP resolution, day/night box camera with Deep Learning Processing Unit (DLPU). Forensic WDR and Lightfinder 2.0. OptimizedIR, a power-efficient 850nm IR LED technology covering 50 meters (164 feet). Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 5 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P13 Series P1387-BE - network surveillance camera (no lens) - box - TAA Compliant Device Type: Network surveillance camera (no lens) - fixed - box - outdoor Audio: Yes: two-way audio capability, microphone pairing, speaker pairing Dimensions (WxDxH): 6.3 in x 15.9 in x 5.6 in Weight: 4.85 lbs Color: White, NCS S 1002-B Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2592 x 1944 Frame Rate (max): 60 frames per second Optical Sensor Type: PS RGB CMOS - 1/2.7" - 5 MP Lens Mounting: CS-mount Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Control Interface: RS-485, RS-422 Voltage: DC 10 - 28 V / PoE Plus Class 4 Features: Image mirror, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Privacy Mask Function, digital PTZ function, Variable Bitrate (VBR), Audio Detection, Defog, auto gain control, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, electronic image stabilization, guard tour, on-screen directional indicator, i-CS lens, Remote Back Focus, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, dynamic text, control queue, signed video, deep learning processing unit (DLPU), day/night shift level, target aperture, scene metadata TAA Compliant: Yes Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 140 °F; 10 - 100% RH (condensing) relative humidity - General
Device Type: Network surveillance camera (no lens) Audio Support: Yes: two-way audio capability, microphone pairing, speaker pairing Audio Formats: PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS Form Factor: Box Connectivity Technology: Wired Width: 6.3 in Depth: 15.9 in Height: 5.6 in Weight: 4.85 lbs Localization: Argentina, Australia, China, Japan, India, Brazil, United Kingdom, United States, Europe - Camera
Type: Color - Day&Night - fixed - outdoor Digital Video Format: MJPEG, AVC, HEVC, H.265, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 Max Digital Video Resolution: 2592 x 1944 Exposure Range: 2 sec - 1/66500 sec Video Capture: 2592 x 1944, WDR off @ 50/60 fps ¦ 2592 x 1944, WDR on @ 25/30 fps RAM: 2 GB Flash Memory: 8 GB Features: Image mirror, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Privacy Mask Function, digital PTZ function, Variable Bitrate (VBR), Audio Detection, Defog, auto gain control, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, electronic image stabilization, guard tour, on-screen directional indicator, i-CS lens, Remote Back Focus, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, brute force delay protection, ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, dynamic text, control queue, signed video, deep learning processing unit (DLPU), day/night shift level, target aperture, scene metadata - Image Sensor
Type: 5 MP PS RGB CMOS 1/2.7" - Lens Construction
Type: CS-mount - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: DDNS, DNS, FTP, HTTP, NTP, SMTP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS, MDNS, UDP, TCP, ICMPv4, ICMPv6, HTTP/2, DNSv6, DHCPv4, DHCPv6 Control Interface: RS-485, RS-422 Alarm Inputs Qty: 2 Alarm Outputs Qty: 2 - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Terminal block connectors, owner authentication key TAA Compliant: Yes Compliant Standards: UL, VCCI, cUL, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, KC, EN 50121-4, VCCI Class A, EAC, RCM, USGv6, BFR-free, EN 55032 Class A, CISPR 32 Class A, IEEE 802.3af, IEEE 802.3at, REACH 2006/1907, EN 55035, CISPR 35, FIPS 140, IEEE 802.1x, PVC-free, NIST SP500-267, IPv6, IEC/EN 62262 IK10, NEMA TS-2 (2.2.7-2.2.9), UKCA, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, ETSI EN 303 645, CFR free, IEC/EN 60529, EN 63000:2018, IS 13252, IEEE 802.1ar, IEC/EN/UL 62368-1 Third Edition, NEMA 250 Type 4X Color: White, NCS S 1002-B - Power
Power Requirements: DC 10 - 28 V / PoE Plus Class 4 - Software / System Requirements
Software Included: AXIS Video Motion Detection, AXIS Object Analytics, AXIS Live Privacy Shield - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 10 - 100% RH (condensing) - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02902-001 |
| MFG Part# | 02902-001 |
| Max Resolution | 2592 x 1944 |
| Device Type | Network surveillance camera (no lens) |
| Connectivity Technology | Wired |
| Form Factor | Box |
| Type | CS-mount |
| Color | NCS S 1002-B, White |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
