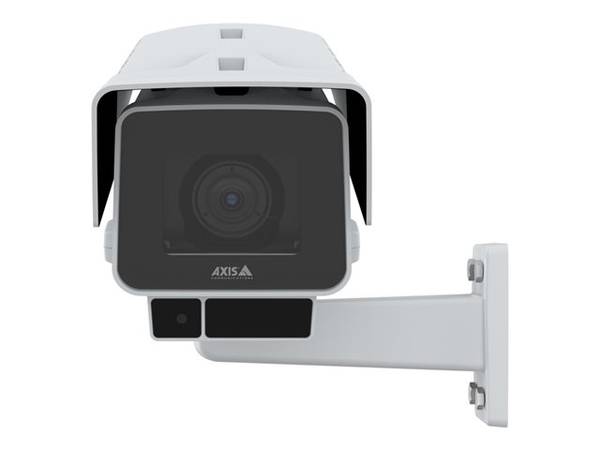

AXIS P1387-LE 7976022
SKU
7976022
CA$1,642.51
1/2.7in image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 5 MP resolution, day/night box camera with Deep Learning Processing Unit (DLPU). Forensic WDR and Lightfinder 2.0. OptimizedIR, a power-efficient 850nm IR LED technology covering 50 meters (164 feet). Varifocal IR corrected 2.8-13 mm F1.4 P-iris lens and remote focus. Camera supports CS-mount P-Iris, DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 5 MP stream up to 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio with speaker pairing, audio detection with either optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P13 Series P1387-LE - network surveillance camera - box Device Type: Network surveillance camera - fixed - box - outdoor - vandal / weatherproof Audio: Yes: two-way audio capability Camera Mount Type: Wall mount Dimensions (WxDxH): 6.3 in x 15.9 in x 6.5 in Weight: 5.45 lbs Color: White, NCS S 1002-B, black Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 4.6 x Max Resolution: 2592 x 1944 Frame Rate (max): 60 frames per second Motion Detection: Yes Optical Sensor Type: PS RGB CMOS - 1/2.7" - 5 MP Minimum Illumination: 0.1 lux - color - F1.4 ¦ 0.02 lux - B&W - F1.4 Focal Length Control: Vari-focal Focal Length: 2.8 mm - 13 mm Lens Mounting: CS-mount Lens Iris: F/1.4 - auto iris (P-Iris) Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Control Interface: RS-485, RS-422 Voltage: PoE Class 4 Features: Axis Edge Vault, IR Corrected lens, infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, replaceable lens, Electronic Image Stabilizer (EIS), secure boot, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, digital PTZ function, control queue, on-screen directional indicator, guard tour, auto gain control, network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, day/night shift level, Defog, microphone pairing, speaker pairing, Audio Detection, leveling assistant, Remote Back Focus, Axis device ID, secure keystore, signed firmware, signed video, brute force delay protection, digest authentication, IP address filtering, DORI coverage Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -40 °F - 140 °F - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Box Camera Mount Type: Wall mount Connectivity Technology: Wired Width: 6.3 in Depth: 15.9 in Height: 6.5 in Weight: 5.45 lbs Localization: Argentina, Australia, Brazil, China, European Union, India, Japan, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - outdoor - vandal / weatherproof Digital Video Format: H.264, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 2592 x 1944 Motion Detection: Yes Minimum Illumination: 0.1 lux - color - F1.4 ¦ 0.02 lux - B&W - F1.4 Infrared LEDs: Yes Infrared Distance: 164 ft Video Capture: 2592 x 1944, WDR off @ 50/60 fps ¦ 2592 x 1944, WDR on @ 25/30 fps RAM: 2 GB Flash Memory: 8 GB Features: Axis Edge Vault, IR Corrected lens, infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, replaceable lens, Electronic Image Stabilizer (EIS), secure boot, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, digital PTZ function, control queue, on-screen directional indicator, guard tour, auto gain control, network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, day/night shift level, Defog, microphone pairing, speaker pairing, Audio Detection, leveling assistant, Remote Back Focus, Axis device ID, secure keystore, signed firmware, signed video, brute force delay protection, digest authentication, IP address filtering, DORI coverage - Image Sensor
Type: 5 MP PS RGB CMOS 1/2.7" - Lens Construction
Type: CS-mount - vari-focal Optical Zoom: 4.6 x Focal Length: 2.8 mm - 13 mm Lens Iris: F/1.4 auto iris (P-Iris) Horizontal Field of View (degree): 24 - 112 Vertical Field of View (degree): 18 - 50 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, TLS, MDNS Control Interface: RS-485, RS-422 Alarm Inputs Qty: 2 Alarm Outputs Qty: 2 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3, FIPS 140 - Miscellaneous
Included Accessories: Terminal block connectors, wall mount kit, owner authentication key Compliant Standards: IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 Color: White, NCS S 1002-B, black - Power
Power Requirements: PoE Class 4 Power Device: 8.5 Watt - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Live Privacy Shield, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 140 °F - Special Feature
COO: POLAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02736-001 |
| MFG Part# | 02736-001 |
| UPC | 7331021082694 |
| Max Resolution | 2592 x 1944 |
| Device Type | Network surveillance camera |
| Optical Zoom | 4.6 x |
| Connectivity Technology | Wired |
| Form Factor | Box |
| Type | CS-mount - vari-focal |
| Color | black, NCS S 1002-B, White |
| Digital Video Format | AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Focal Length | 2.8 mm - 13 mm |
| Encryption Algorithm | FIPS 140, TLS 1.2, TLS 1.3 |
