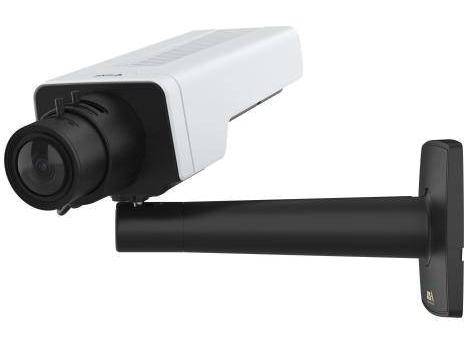

AXIS P1388 1/1.8IN IMAGE SENSOR, 4K / 8 MP RESOLUTION, DAY/NIGHT, FIXED BOX CAMERA WITH DEEP LEARNING PROCESSING UNIT (DLPU). 7913517
SKU
7913517
CA$1,312.66
1/1.8IN image sensor, 4K / 8 MP resolution, day/night, fixed box camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Varifocal CS-mount 3.9-10 mm P-iris lens with remote focus. Camera supports CS-mount DC-iris lenses and i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 4K / 8 MP at 50/60 fps. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. Two-way audio with speaker pairing, audio detection with either built-in microphone or optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485
Category: PC & Network Cameras
- Primary Information
Product Description: AXIS P13 Series P1388 - network surveillance camera - box Device Type: Network surveillance camera - fixed - box - indoor Audio: Yes: two-way audio capability, built-in microphone Dimensions (WxDxH): 3.1 in x 8.4 in x 2.5 in Weight: 16.58 oz Color: White, NCS S 1002-B, black, NCS S 9000-N Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2.6 x Max Resolution: 3840 x 2160 Frame Rate (max): 60 frames per second Motion Detection: Yes Video Modes: 4K Optical Sensor Type: PS RGB CMOS - 1/1.8" - 8 MP Minimum Illumination: 0.13 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.03 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.3 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.06 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE Focal Length Control: Vari-focal Focal Length: 3.9 mm - 10 mm Lens Mounting: CS-mount Lens Iris: F/1.5 - auto iris (P-Iris) Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Control Interface: RS-485, RS-422 Voltage: DC 10 - 28 V / PoE Plus Class 3 Features: IR Corrected lens, infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, digital PTZ function, control queue, on-screen directional indicator, guard tour, auto gain control, network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, electronic image stabilization, day/night shift level, Defog, microphone pairing, Audio Detection, leveling assistant, Remote Back Focus, Axis device ID, secure keystore, signed firmware, signed video, brute force delay protection, digest authentication, Axis Edge Vault, secure boot, IP address filtering, i-CS lens Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): 14 °F - 131 °F; 10 - 85% RH (non-condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability, built-in microphone Audio Formats: LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS Form Factor: Box Connectivity Technology: Wired Width: 3.1 in Depth: 8.4 in Height: 2.5 in Weight: 16.58 oz Localization: Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States - Camera
Type: Color - Day&Night - fixed - indoor Digital Video Format: H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Video Modes: 4K Exposure Range: 2 sec - 1/66500 sec Minimum Illumination: 0.13 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.03 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.3 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE ¦ 0.06 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE Video Capture: 3840 x 2160, WDR off @ 50/60 fps ¦ 3840 x 2160, WDR on @ 25/30 fps RAM: 2 GB Flash Memory: 8 GB Features: IR Corrected lens, infrared-cut filter, Forensic WDR, Lightfinder 2.0 technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, 2D Noise Reduction Technology, 3D Noise Reduction Technology, 180° image rotation, 270° image rotation, 90° image rotation, image mirror, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, target aperture, digital PTZ function, control queue, on-screen directional indicator, guard tour, auto gain control, network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, electronic image stabilization, day/night shift level, Defog, microphone pairing, Audio Detection, leveling assistant, Remote Back Focus, Axis device ID, secure keystore, signed firmware, signed video, brute force delay protection, digest authentication, Axis Edge Vault, secure boot, IP address filtering, i-CS lens - Image Sensor
Type: 8 MP PS RGB CMOS 1/1.8" - Lens Construction
Type: CS-mount - vari-focal Optical Zoom: 2.6 x Focal Length: 3.9 mm - 10 mm Lens Iris: F/1.5 auto iris (P-Iris) Horizontal Field of View (degree): 46 - 122 Vertical Field of View (degree): 26 - 64 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T Network Protocols: IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf Control Interface: RS-485, RS-422 Alarm Inputs Qty: 2 Alarm Outputs Qty: 2 - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 - terminal block Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card Encryption Algorithm: TLS 1.2, TLS 1.3 - Miscellaneous
Included Accessories: Terminal block connectors, owner authentication key, stand Compliant Standards: IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 Color: White, NCS S 1002-B, black, NCS S 9000-N - Power
Power Requirements: DC 10 - 28 V / PoE Plus Class 3 - Software / System Requirements
Software Included: AXIS Object Analytics, AXIS Live Privacy Shield, AXIS Video Motion Detection - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 131 °F Relative Humidity (operating): 10 - 85% RH (non-condensing) - Special Feature
COO: THAILAND - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 46171610 |
| Part# | ACI-02737-001 |
| MFG Part# | 02737-001 |
| UPC | 7331021082700 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Optical Zoom | 2.6 x |
| Connectivity Technology | Wired |
| Form Factor | Box |
| Type | CS-mount - vari-focal |
| Color | black, NCS S 1002-B, NCS S 9000-N, White |
| Digital Video Format | AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Focal Length | 3.9 mm - 10 mm |
| Encryption Algorithm | TLS 1.2, TLS 1.3 |
